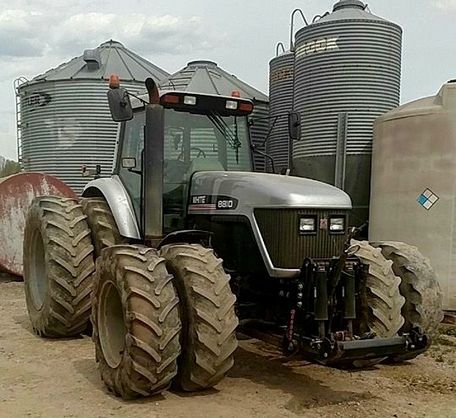

White 8810

Production: 1998 - 2001

Production
Manufacturer:	White (a part of AGCO)
Factories:	Coldwater, Ohio, USA
Beauvais, France
Original price:	$135,000 (1999)

White 8810 Power
PTO (claimed):	225 hp 167.8 kW
Drawbar (tested):	200.61 hp 149.6 kW
PTO (tested):	227.95 hp 170.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard.
Transmission:	18-speed full power shift

Hydraulics
Type:	closed center pressure-flow compensated (PFC)
Pressure:	2900 psi 200.0 bar
Valves:	4
Total flow:	29 gpm 109.8 lpm
39 gpm 147.6 lpm (optional)

Tractor hitch
Rear Type:	III/IIIN
Rear lift (at 24"/610mm):	14,000 lbs 6350 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000
Engine RPM:	1000@2100

8810 Serial Numbers
1998:	CG001001
1999:	CH001001

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Cummins C8.3A
turbocharged aftercooled diesel
6-cylinder
liquid-cooled
Displacement:	505 ci 8.3 L
Bore/Stroke:	4.488x5.315 inches 114 x 135 mm
Air cleaner:	dual paper elements
Compression:	17.3:1
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Manufacturer:	Funk-Deere
Type:	full power shift
Gears:	18 forward and 6 reverse
Clutch:	electro-hydraulic wet disc

Dimensions
Wheelbase:	121 inches 307 cm
Length:	203 inches 515 cm
Width:	98.2 inches 249 cm
Height (cab):	121 inches 307 cm
Front tread:	60 to 88 inches 152 to 223 cm
Rear tread:	64.1 to 128.9 inches 162 to 327 cm
