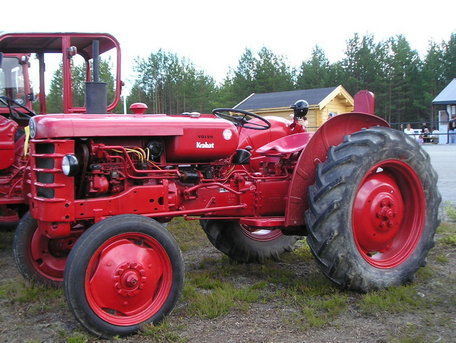

Volvo T425 Krabat

Production: 1957 - 1962

Production
Manufacturer:	Volvo
Type:	Utility tractor
Total built:	11193

Volvo T425 Power
Engine:	32 hp 23.9 kW
PTO (claimed):	25 hp 18.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	4-speed gear

Hydraulics
Pump flow:	6.3 gpm 23.8 lpm

Tractor hitch
Rear lift:	1764 lbs 800 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)

Engine Detail
Volvo B16C
gasoline
4-cylinder
liquid-cooled
A foot accelerator pedal allowed increasing engine speed to 2500 RPM for road travel.
Displacement:	97.6 ci 1.6 L
Bore/Stroke:	3.12x3.15 inches 79 x 80 mm
Power:	32 hp 23.9 kW
Rated RPM:	2000
Starter volts:	6
Oil capacity:	4 qts 3.8 L
Coolant capacity:	8.5 qts 8.0 L

Transmission
Type:	gear
Gears:	4 forward and 1 reverse
Clutch:	228.6mm dry disc

Dimensions
Wheelbase:	75.4 inches 191 cm
Length:	116.9 inches 296 cm
Width:	66.9 inches 169 cm
Height (hood):	49.2 inches 124 cm
Height (exhaust):	77.2 inches 196 cm
Weight:	2976 lbs 1349 kg
Clearance (front axle):	17.7 inches 44 cm
Clearance (rear axle):	15.4 inches 39 cm
Front tread:	47.2/55.5 inches 119/140 cm
Rear tread:	52.8 to 76.4 inches 134 to 194 cm
