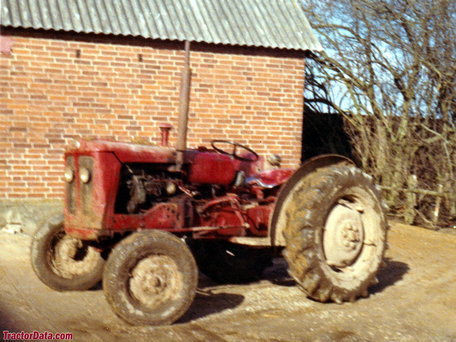

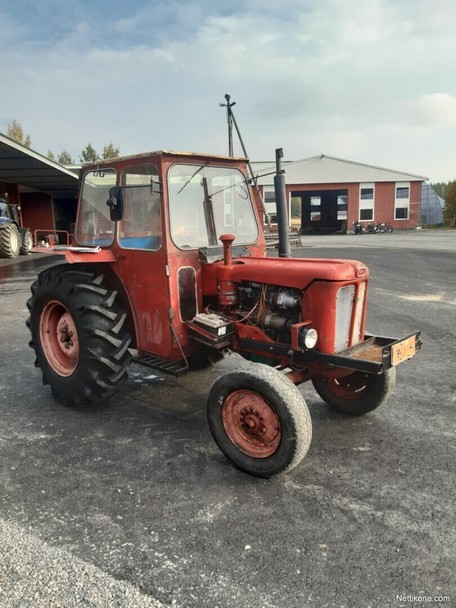

Volvo T320 Buster

Production: 1961 - 1964

Production
Manufacturer:	Volvo
Total built:	16370

Volvo T320 Power
Engine:	37 hp 27.6 kW

Mechanical
Chassis:	4x2 2WD
Cab:	Open operator station. Four-post ROPS availabloe.
Transmission:	5-speed gear

Capacity
Fuel:	9.25 gal 35.0 L
Hydraulic system:	6.6 gal 25.0 L

Hydraulics
Capacity:	6.6 gal 25.0 L
Pump flow:	7.1 gpm 26.9 lpm

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	548@2000

Electrical
Charging system:	generator
Charging amps:	5
Battery volts:	12
Battery AH:	60

Engine Detail
Perkins
diesel
3-cylinder
liquid-cooled
Displacement:	152.55 ci 2.5 L
Power:	37 hp 27.6 kW

Transmission
Type:	gear
Gears:	5 forward and 1 reverse
Oil capacity:	21.1 qts 20.0 L

Dimensions
Wheelbase:	76.8 inches 195 cm
Length:	116.1 inches 294 cm
Width:	67.7 inches 171 cm
Weight:	3175 lbs 1440 kg
Ballasted weight:	4189 lbs 1900 kg
Clearance (front axle):	16.9 inches 42 cm
Clearance (rear axle):	15.8 inches 40 cm
Front tread:	48/54.7 inches 121/138 cm
Front tread:	48 to 70.5 inches 121 to 179 cm
Rear tread:	52.8 to 76.4 inches 134 to 194 cm
