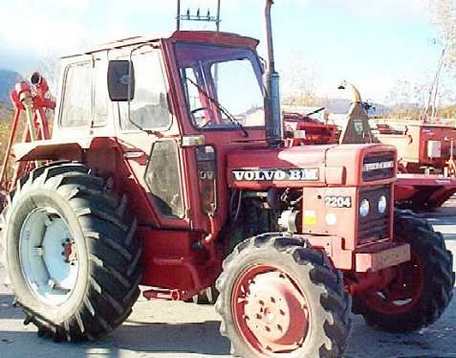

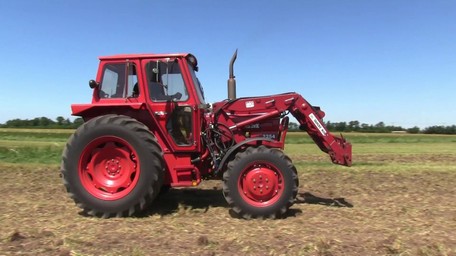

Volvo 2204

Production: 1979 - 1981

Production
Manufacturer:	Volvo
Type:	Utility tractor
Total built:	320

Variants

2WD

4WD

Volvo 2204 Power
Engine:	56 hp 41.8 kW
PTO (claimed):	46 hp 34.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Volvo BM cab standard with heater.
Transmission:	8-speed synchromesh

Hydraulics
Pressure:	2495 psi 172.0 bar
Valves:	2
Pump flow:	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	4079 lbs 1850 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@1940

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	35
Batteries:	2
Battery volts:	12
Battery AH:	140

Engine Detail
Volvo D39T
diesel
4-cylinder
liquid-cooled
Displacement:	235.6 ci 3.9 L
Bore/Stroke:	3.874x5.000 inches 98 x 127 mm
Power:	56 hp 41.8 kW
Fuel system:	direct injection
Pre-heating:	thermostart
Compression:	16:1
Rated RPM:	2200
Torque:	160.8 lb-ft 218.0 Nm
Torque RPM:	1400
Starter volts:	12
Starter power:	4 hp 3.0 kW

Transmission
Type:	synchromesh
Gears:	8 forward and 4 reverse
Clutch:	279.4mm dry disc
Four gears in two ranges, plus reverse.

Dimensions
Wheelbase:	85.43 inches 216 cm
Length:	145.67 inches 370 cm
Height:	100.39 inches 254 cm
Weight:	7497 lbs 3400 kg
