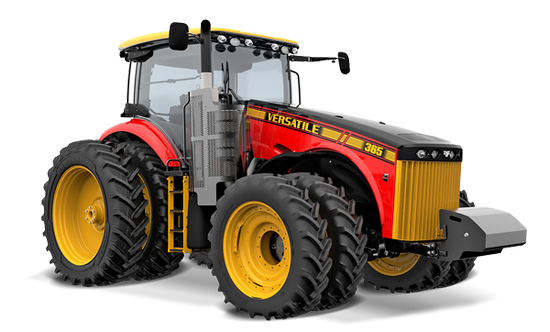

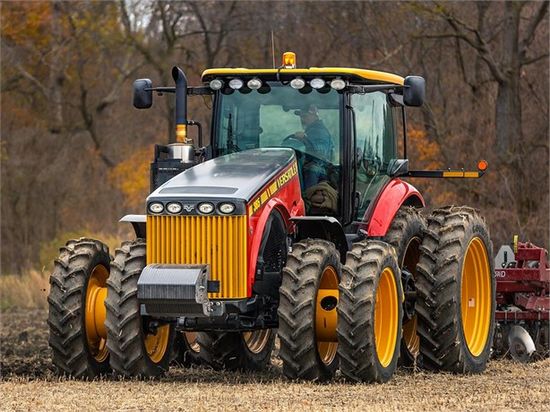

Versatile 335
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Versatile (a part of Rostselmash) |
| Type: | Row-Crop tractor |
| Factory: | Winnipeg, Manitoba, Canada |
Versatile 335 Power | |
| Engine: | 335 hp 249.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 16-speed full power shift |
Hydraulics | |
| Type: | closed center load sensing (CCLS) |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 4 to 6 |
| Pump flow: | 55 gpm 208.2 lpm |
| 72 gpm 272.5 lpm *Optional Hi-Flow | |
Tractor hitch | |
| Rear Type: | IVN |
| Rear lift: | 17260 lbs 7829 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 950 |
| Battery volts: | 12 |
Engine Detail | |
| Cummins QSL9 | |
| turbocharged and intercooled diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement: | 543 ci 8.9 L |
| Bore/Stroke: | 4.5x5.7 inches 114 x 145 mm |
| Emissions: | Tier IV |
| Power: | 335 hp 249.8 kW |
| Maximum Power: | 370 hp 275.9 kW |
| Rated RPM: | 2100 |
| Torque: | 1130 lb-ft 1532.3 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | full power shift |
| Gears: | 16 forward and 9 reverse |
Dimensions | |
| Wheelbase: | 129 inches 327 cm |
| Length: | 251 inches 637 cm |
| Height (cab): | 131.5 inches 334 cm |
| Weight: | 23945 lbs 10861 kg |
| Max weight: | 35400 lbs 16057 kg |
| Rear axle: | Bar: 4.7 by 120 inches 119 by 3048 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 60 to 120 inches 152 to 304 cm |
