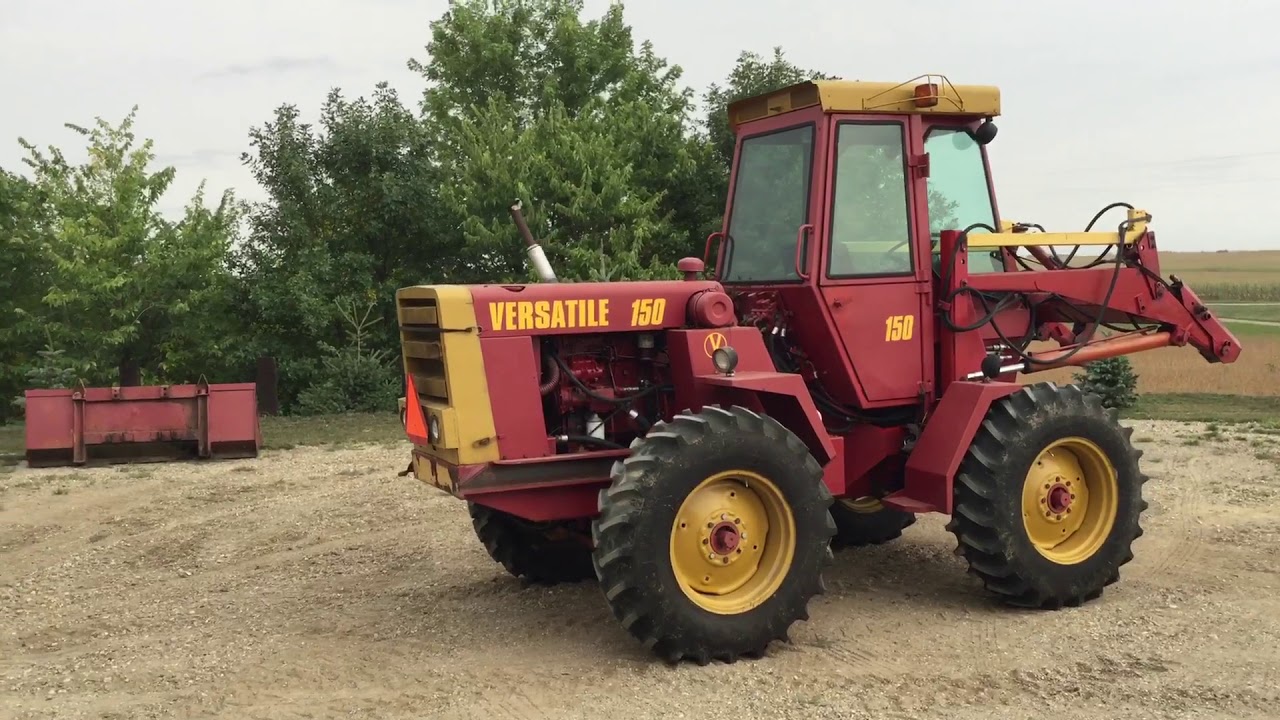

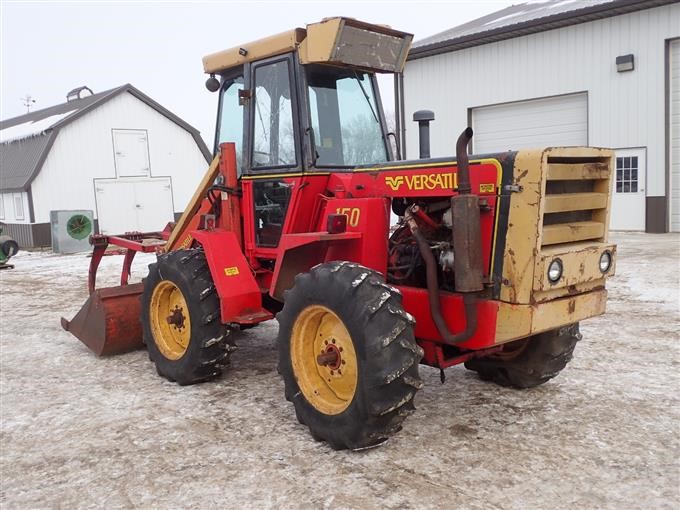

Versatile 150
Contents:
Production | |
| Manufacturer: | Versatile |
| Factory: | Winnipeg, Manitoba, Canada |
| Original price: | $21,500 (1981 ) |
Versatile 150 Power | |
| Engine: | 71 hp 52.9 kW |
| PTO (claimed): | 54 hp 40.3 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic disc |
| Cab: | ROPS standard. Optional isolated cab with air-conditioning. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 34 gal 128.7 L |
| Hydraulic system: | 40 gal 151.4 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 40 gal 151.4 L |
| Pressure: | 2250 psi 155.1 bar |
| Valves: | 2 or 3 |
| Pump flow: | 15 gpm 56.8 lpm |
| Steering flow: | 5 gpm 18.9 lpm |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
150 Serial Numbers | |
| Location: | Serial number plate on the floor of the cab, near the base of the tractor seat. |
| 1977: | 000028 |
| 1978: | 000425 |
| 1979: | ------ |
| 1980: | 000750 |
| 1981: | 001150 |
| Final: | 001549 |
Electrical | |
| Ground: | negative |
| Charging system: | Delco alternator |
| Charging amps: | 72 |
| Batteries: | 2 |
| Battery CCA: | 450 |
| Battery volts: | 12 |
| Battery AH: | 95 |
Engine Detail | |
| Perkins | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 235.9 ci 3.9 L |
| Bore/Stroke: | 3.875x5.000 inches 98 x 127 mm |
| Power: | 71 hp 52.9 kW |
| Air cleaner: | Donaldson dry type |
| Compression: | 16:1 |
| Rated RPM: | 2250 |
| Torque: | 192 lb-ft 260.4 Nm |
| Torque RPM: | 1350 |
| Starter volts: | 12 |
| Coolant capacity: | 17 qts 16.1 L |
Transmission | |
| Transmission: | Eaton 46 |
| Type: | hydrostatic |
| Gears: | infinite (three-range) forward and reverse |
Dimensions | |
| Wheelbase: | 80 inches 203 cm |
| Length: | 150 inches 381 cm |
| Width: | 77.25 inches 196 cm |
| Height (cab): | 109 inches 276 cm |
| Operating weight: | 7,800 lbs 3538 kg |
| Max weight: | 10,700 lbs 4853 kg |
| Front tread: | 62 to 84 inches 157 to 213 cm |
| Rear tread: | 62 to 84 inches 157 to 213 cm |
