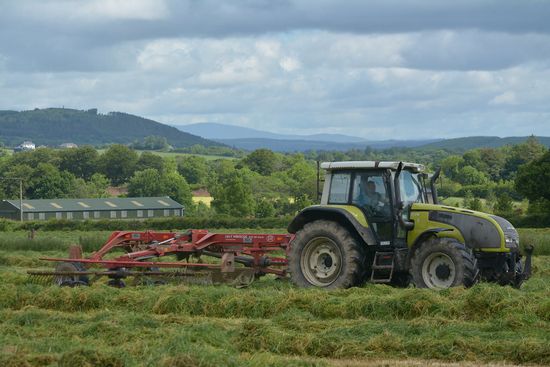

Valtra T170

Production: 2002 - 2007

Production
Manufacturer:	Valtra
Type:	Row-Crop tractor

Valtra T170 Power
Engine (gross):	170 hp 126.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	36-speed 3-speed power shift

Hydraulics
Type:	load sensing
Pressure:	2843 psi 196.0 bar
Valves:	2 to 4
Total flow:	23.8 gpm 90.1 lpm

Tractor hitch
Rear Type:	III
Rear lift (at ends):	16976 lbs 7700 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
540E/1000*Optional
Engine RPM:	540@1874 540E@ 1539 1000@2000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Sisu Diesel 634 DSRAE
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	449.6 ci 7.4 L
Bore/Stroke:	4.252x5.276 inches 108 x 134 mm
Power (gross):	170 hp 126.8 kW
Cooling system:	viscous fan
Rated RPM:	2100
Torque:	483.1 lb-ft 655.1 Nm
Torque RPM:	1400
Starter volts:	12
Starter power:	4.8 hp 3.6 kW

Transmission
Type:	3-speed power shift
Gears:	36 forward and reverse
Clutch:	wet disc
Three speed power shift with power shuttle.

Dimensions
Wheelbase:	108.2 inches 274 cm
Length:	202.7 inches 514 cm
Width:	92 inches 233 cm
Height (cab):	119.3 inches 303 cm
Height (exhaust):	116.7 inches 296 cm
Weight:	13118 lbs 5950 kg
Clearance (front axle):	23.6 inches 59 cm
Clearance (rear axle):	23.6 inches 59 cm
