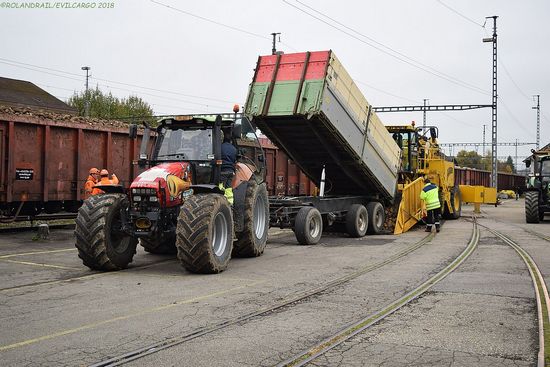

Valtra T161
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Valtra |
| Type: | Row-Crop tractor |
Variants | |
| T161 Classic: | mechanical transmission and hydraulic control |
| T161 HiTech: | electronic transmission, mechanical hydraulics |
| T161 Advance: | eletronic transmission and hydraulic control |
Valtra T161 Power | |
| Engine: | 170 hp 126.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 36-speed |
Hydraulics | |
| Pressure: | 2843 psi 196.0 bar |
| 2973 psi 205.0 bar (Advance) | |
| Pump flow: | 19.3 gpm 73.1 lpm |
| 30.4 gpm 115.1 lpm (Advance) | |
Tractor hitch | |
| Rear Type: | III |
| Rear lift: | 16,980 lbs 7702 kg |
| 17,860 lbs 8101 kg (Advance) | |
| Front lift: | 7,716 lbs 3499 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | ground/540/540E/1000 |
| Front PTO: | optional |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
| Battery AH: | 184 |
Engine Detail | |
| Sisu Diesel 66 CTA-4V | |
| diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 402.8 ci 6.6 L |
| Emissions: | Tier 3 |
| Power: | 170 hp 126.8 kW |
| Fuel system: | common rail |
| Rated RPM: | 2200 |
| Torque: | 486.8 lb-ft 660.1 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Gears: | 36 forward and reverse |
Dimensions | |
| Wheelbase: | 108.2 inches 274 cm |
| Length: | 203.1 inches 515 cm |
| Width: | 92.1 inches 233 cm |
| Height (cab): | 134.1 inches 340 cm |
| Height (exhaust): | 118.2 inches 300 cm |
| Weight: | 13,120 lbs 5951 kg |
| Ground clearance: | 23.4 inches 59 cm |
