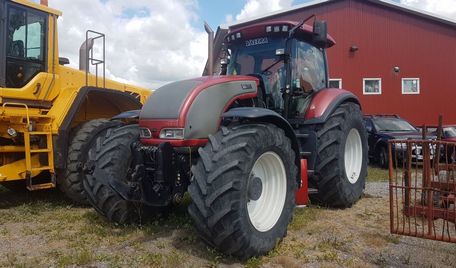

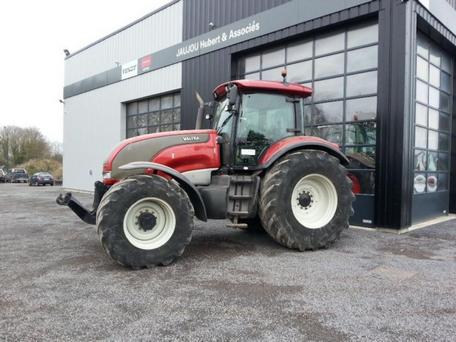

Valtra S280

Production: 2003 - 2008

Production
Manufacturer:	Valtra
Type:	Row-Crop tractor

Valtra S280 Power
Engine:	276 hp 205.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard
Transmission:	40-speed four-speed power shift

Hydraulics
Type:	closed center
Pressure:	2901 psi 200.0 bar
Valves:	7
Pump flow:	38.8 gpm 146.9 lpm

Tractor hitch
Rear lift:	22,480 lbs 10196 kg
Front lift:	16,520 lbs 7493 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000
Engine RPM:	1000@21112
Front PTO:	independent*Optional
Front RPM:	1000
Engine RPM:	1000@2071

Electrical
Ground:	negatve

Engine Detail
SisuDiesel 84ETA
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	512.6 ci 8.4 L
Bore/Stroke:	4.37x5.71 inches 111 x 145 mm
Power:	276 hp 205.8 kW
Rated RPM:	2200
Torque:	793 lb-ft 1075.3 Nm
Torque RPM:	1400
Starter type:	electric

Transmission
Type:	four-speed power shift
Gears:	40 forward and reverse

Dimensions
Wheelbase:	121.3 inches 308 cm
122.3 inches 310 cm (suspended axle)
Length:	200.8 inches 510 cm
Width:	98.4 inches 249 cm
Height (cab):	133.9 inches 340 cm
Weight:	19400 lbs 8799 kg
Clearance (front axle):	22.1 inches 56 cm
Clearance (rear axle):	20.5 inches 52 cm
