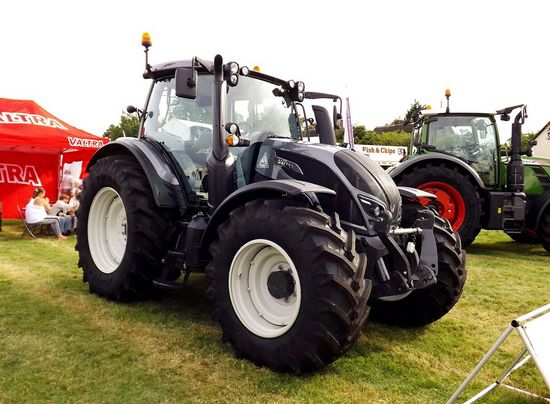

Valtra N114
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Valtra (a part of AGCO) |
| Type: | Row-Crop tractor |
Valtra N114 Power | |
| Engine: | 114 hp 85.0 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 30-speed five-speed power shift |
Hydraulics | |
| Type: | open center |
| closed center*Optional | |
| Rear valves: | 2 to 5 |
| Pump flow: | 19.3 gpm 73.1 lpm (open) |
| 23.8 gpm 90.1 lpm (open option) | |
| 30.4 gpm 115.1 lpm (closed) | |
| 42.3 gpm 160.1 lpm (closed option) | |
| 52.8 gpm 199.8 lpm (closed option) | |
Tractor hitch | |
| Rear lift: | 14162 lbs 6423 kg |
| 17534 lbs 7953 kg *Optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Front PTO: | independent*Optional |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| AGCO Power 44 AWF | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 268.4 ci 4.4 L |
| Bore/Stroke: | 4.25x4.72 inches 108 x 120 mm |
| Emissions: | Stage 4 |
| Power: | 114 hp 85.0 kW |
| Maximum Power: | 123.4 hp 92.0 kW |
| Rated RPM: | 2100 |
| Torque: | 368.8 lb-ft 500.1 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Hi Tech |
| Type: | five-speed power shift |
| Gears: | 30 forward and reverse |
Dimensions | |
| Wheelbase: | 104.9 inches 266 cm |
| Length: | 183.3 inches 465 cm |
| Height (cab): | 116.5 inches 295 cm |
| Operating weight: | 13448 lbs 6100 kg |
| Max weight: | 22046 lbs 10000 kg |
| Ground clearance: | 21.7 inches 55 cm |
