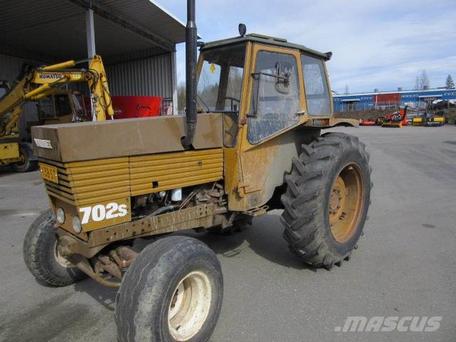

Valmet 702S

Production: 1974 - 1979

Production
Manufacturer:	Valmet
Type:	Row-Crop tractor

Valmet 702S Power
Engine:	75 hp 55.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Cab standard with heater.
Transmissions:	8-speed synchromesh
16-speed two-speed power shift

Hydraulics
Pump flow:	6.9 gpm 26.1 lpm

Tractor hitch
Rear lift:	4,674 lbs 2120 kg

Power Take-off (PTO)
Rear RPM:	540
540/1000*Optional
Engine RPM:	540@1556 1000@2143

Engine Detail
Valmet 411 BS 72
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	255.1 ci 4.2 L
Bore/Stroke:	4.252x4.488 inches 108 x 114 mm
Power:	75 hp 55.9 kW
Rated RPM:	2200
Torque:	193.1 lb-ft 261.8 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	88.2 inches 224 cm
Length:	150.4 inches 382 cm
Width:	78.7 inches 199 cm
Height:	98.4 inches 249 cm
Height (exhaust):	101 inches 256 cm
Weight:	8907 lbs 4040 kg
