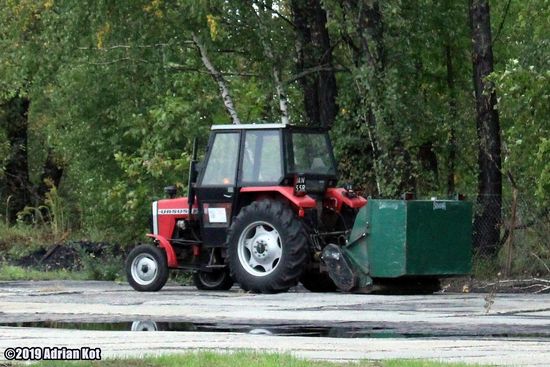

Ursus 3514

Production: 1984 - 2011

Production
Manufacturer:	Ursus
Factory:	Warsaw, Poland

Variants

2WD

Ursus 3514 Power
Engine:	46.4 hp 34.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard.
Transmission:	8-speed

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	live (two-stage clutch)
Rear RPM:	540 (1.375)
Engine RPM:	540@1893

Electrical
Charging system:	alternator
Charging amps:	55
Battery volts:	12

Engine Detail
Ursus-Perkins 3250
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	46.4 hp 34.6 kW
Air cleaner:	oil bath
Rated RPM:	2250
Starter volts:	12

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	87.8 inches 223 cm
Length:	137.8 inches 350 cm
Width:	72.8 inches 184 cm
Height:	102.4 inches 260 cm
Operating weight:	6680 lbs 3030 kg
Ballasted weight:	6900 lbs 3129 kg
Ground clearance:	10.8 inches 27 cm
