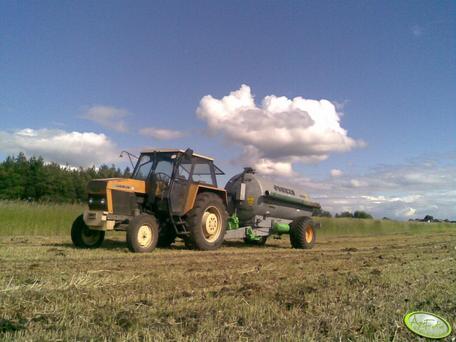

Ursus 1232

Production: 1991 - 2009

Production
Manufacturer:	Ursus
Factory:	Warsaw, Poland

Variants
1232:	2WD
1234:	4WD

Ursus 1232 Power
Engine:	117.5 hp 87.6 kW
PTO (claimed):	102.9 hp 76.7 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	dry disc
Cab:	Cab standard with heat.
Transmission:	16-speed two-speed power shift

Capacity
Fuel:	34.3 gal 129.8 L
Hydraulic system:	12.15 gal 46.0 L

Hydraulics
Capacity:	12.15 gal 46.0 L
Pump flow:	10.8 gpm 40.9 lpm

Tractor hitch
Rear Type:	II
III*Optional
Control:	position and draft control
Rear lift:	9094 lbs 4125 kg
12125 lbs 5499 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1890 1000@1920

Electrical
Charging system:	alternator
Charging amps:	55
Charging volts:	12
Batteries:	2
Battery volts:	12
Battery AH:	135

Engine Detail
Zetor Z 8701.12
diesel
6-cylinder
liquid-cooled
Displacement:	416.4 ci 6.8 L
Bore/Stroke:	4.33x4.72 inches 110 x 120 mm
Power:	117.5 hp 87.6 kW
Fuel system:	direct injection
Air cleaner:	oil bath
Compression:	17:1
Rated RPM:	2200
Torque:	304.2 lb-ft 412.5 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	24
Starter power:	7.5 hp 5.6 kW
Oil capacity:	20.1 qts 19.0 L
Coolant capacity:	27.5 qts 26.0 L

Transmission
Type:	two-speed power shift
Gears:	16 forward and 8 reverse
Clutch:	380mm hydraulic dry disc
Oil capacity:	48.6 qts 46.0 L
Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift.

Dimensions
Wheelbase:	106.1 inches 269 cm
Length:	175.4 inches 445 cm
Width:	77.4 inches 196 cm
Height (cab):	115.4 inches 293 cm
Height (exhaust):	117 inches 297 cm
Weight:	10075 lbs 4570 kg
Ballasted weight:	11310 lbs 5130 kg
Ground clearance:	17.1 inches 43 cm
Front tread:	53.2/59.1/65/70.9 inches 135/150/165/180 cm
Rear tread:	59.1 to 73.8 inches 150 to 187 cm
