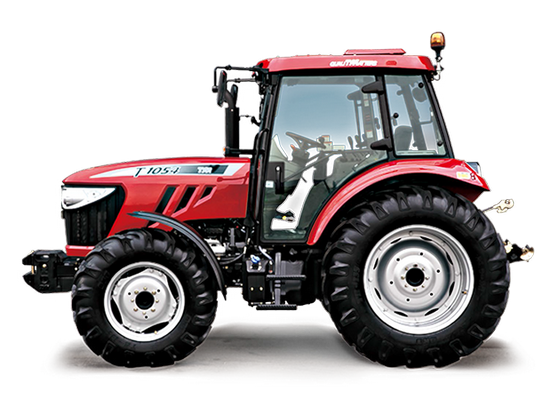

TYM T1054
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | TYM |
| Type: | Utility tractor |
Variants | |
| T1054 SC: | 12-speed |
| T1054 SP: | 32-speed |
TYM T1054 Power | |
| Engine (gross): | 104.6 hp 78.0 kW |
| PTO (claimed): | 95.5 hp 71.2 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 32-speed two-speed power shift |
| 12-speed power shuttle | |
Hydraulics | |
| Type: | open center |
| Valves: | 3 |
| Pump flow: | 15.6 gpm 59.0 lpm |
| Total flow: | 22.7 gpm 85.9 lpm |
| Steering flow: | 7.1 gpm 26.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift (at ends): | 6860 lbs 3111 kg |
| 9568 lbs 4340 kg *Optional | |
| Rear lift (at 24"/610mm): | 5490 lbs 2490 kg |
| 6490 lbs 2943 kg *Optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/750/1000 (1.375) |
