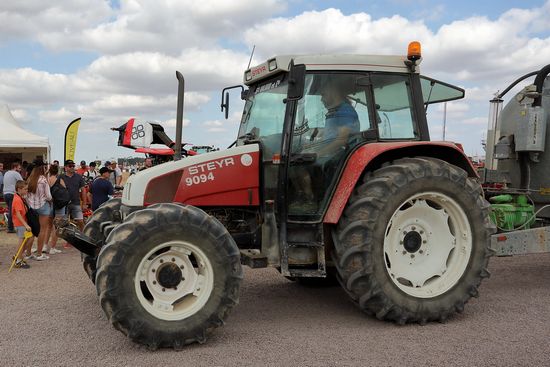

Steyr 9094

Production: 1993 - 1995

Production
Manufacturer:	Steyr
Type:	Row-Crop tractor

Steyr 9094 Power
Engine:	94 hp 70.1 kW
PTO (claimed):	87 hp 64.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Trailer brakes:	hydraulic*Optional
pneumatic*Optional
Cab:	Cab standard with heat. Air-conditioning optional.
Transmissions:	16-speed synchronized
16-speed

Hydraulics
Pressure:	2538 psi 175.0 bar
Pump flow:	13.2 gpm 50.0 lpm
25.4 gpm 96.1 lpm *Optional
Total flow:	28.3 gpm 107.1 lpm
40.4 gpm 152.9 lpm *Optional

Tractor hitch
Rear lift:	9922.5 lbs 4500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	390@1933 540@2045 540E@1506 1000@2130
Front PTO:	optional
Front RPM:	1000
Engine RPM:	1000@1933

Engine Detail
MWM WD 401.85
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	253.6 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	94 hp 70.1 kW
Rated RPM:	2300
Torque:	260 lb-ft 352.6 Nm
Torque RPM:	1500

Dimensions
Wheelbase:	97.5 inches 247 cm
Length:	165.2 inches 419 cm
Width:	81.2 inches 206 cm
Height:	107.5 inches 273 cm
Weight:	8,644 lbs 3920 kg
Clearance (front axle):	18.7 inches 47 cm
Front tread:	59.4 to 63.3 inches 150 to 160 cm
Rear tread:	63 to 67.1 inches 160 to 170 cm
