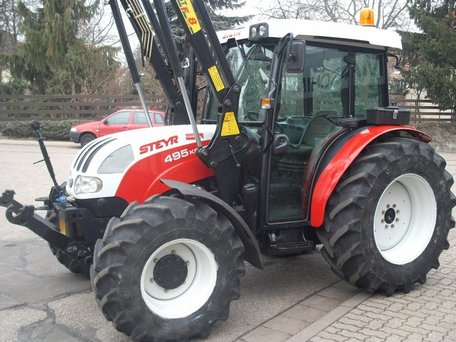

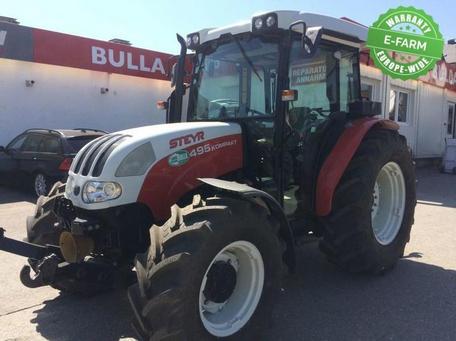

Steyr 495 Kompakt

Production: 2005 - 2008

Production
Manufacturer:	Steyr
Type:	Utility tractor

Steyr 495 Power
Engine:	90 hp 67.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	12-speed
24-speed

Hydraulics
Valves:	4
Total flow:	12.4 gpm 46.9 lpm
15 gpm 56.8 lpm *Optional

Tractor hitch
Rear lift:	5,886 lbs 2669 kg
Front lift:	3,417 lbs 1549 kg

Power Take-off (PTO)
Rear RPM:	540/540E/1000
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator

Engine Detail
Iveco NEF
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	274.6 ci 4.5 L
Bore/Stroke:	4.09x5.20 inches 104 x 132 mm
Emissions:	Tier II
Power:	90 hp 67.1 kW
Rated RPM:	2300
Torque:	269.2 lb-ft 365.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	86 inches 218 cm
Length:	140.5 inches 356 cm
Width:	90.5 inches 229 cm
Weight:	6,724 lbs 3050 kg
