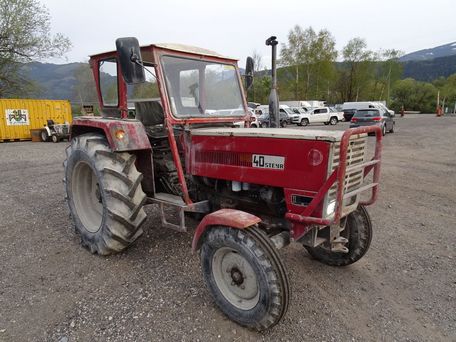

Steyr 40

Production: 1967 - 1970
Type: Utility Tractors

Contents:

Production

Manufacturer:Steyr
Type:Utility tractor

Variants

40A:four-wheel drive

Steyr 40 Power

Engine:38 hp 28.3 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:manual
Cab:Open operator station.
Transmission:8-speed

Hydraulics

Total flow:5.8 gpm 22.0 lpm

Tractor hitch

Rear Type:II/I
Rear lift:2977 lbs 1350 kg

Power Take-off (PTO)

Rear RPM:540

Engine Detail

Steyr WD 307.40
diesel
3-cylinder
liquid-cooled
Displacement:138.0 ci 2.3 L
Bore/Stroke:3.86x3.94 inches 98 x 100 mm
Power:38 hp 28.3 kW
Rated RPM:2400
Torque:109 lb-ft 147.8 Nm
Torque RPM:1400

Transmission

Transmission:gear
Gears:8 forward and 6 reverse

Dimensions

Wheelbase:76.8 inches 195 cm
Length:131.1 inches 332 cm
Width:63.5 inches 161 cm
Height:60.4 inches 153 cm
2WD Front tread:50 inches 127 cm
4WD Front tread:54 inches 137 cm
Rear tread:53.2 inches 135 cm
