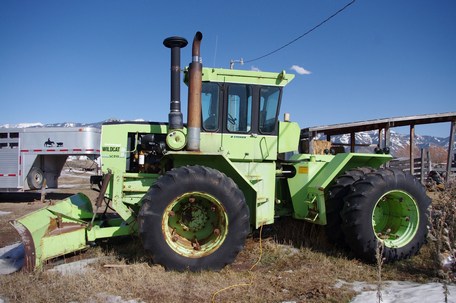

Steiger Wildcat III ST-210

Production: 1976 - 1980

Production
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA

Variants
ST-210:	standard
RC-210:	row-crop axles

Steiger Wildcat III ST-210 Power
Engine:	210 hp 156.6 kW
Drawbar (tested):	163.78 hp 122.1 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	outboard planetary
Steering:	articulated power
Brakes:	hydraulic disc
Cab:	Safari Cab standard with air-conditioning.
Transmission:	10-speed constant mesh

Hydraulics
Type:	open center
Pressure:	2250 psi 155.1 bar
Valves:	2 to 4
Pump flow:	21.7 gpm 82.1 lpm
SCV flow:	8 gpm 30.3 lpm *Minimum
20 gpm 75.7 lpm *Maximum

Tractor hitch
Rear Type:	III*Optional

Wildcat III ST-210 Serial Numbers
1976:	100-00001
1977:	100-00214
1978:	100-00500
1979:	100-00580
1980:	100-00595

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	80
Battery volts:	12
Battery AH:	208

Engine Detail
Caterpillar 3208
diesel
8-cylinder
liquid-cooled
Displacement:	636 ci 10.4 L
Bore/Stroke:	4.50x5.00 inches 114 x 127 mm
Power:	210 hp 156.6 kW
Fuel system:	direct injection
Compression:	16.5:1
Rated RPM:	2800
Idle RPM:	850-3000
Torque:	485 lb-ft 657.7 Nm
Torque RPM:	1400
Starter volts:	12
Oil capacity:	24 qts 22.7 L
Coolant capacity:	40 qts 37.9 L

Transmission
Transmission:	Spicer SST 1010
Type:	constant mesh
Gears:	10 forward and 2 reverse
Clutch:	355.6mm cerametallic disc
Oil capacity:	50 qts 47.3 L

Dimensions
Wheelbase:	118 inches 299 cm
Length:	224 inches 568 cm
Width:	44 inches 111 cm *Frame
95 inches 241 cm *Fenders
Shiping weight:	22000 lbs 9979 kg
Max weight:	25000 lbs 11340 kg
Front axle:	Raba 598
Rear axle:	Raba 598
