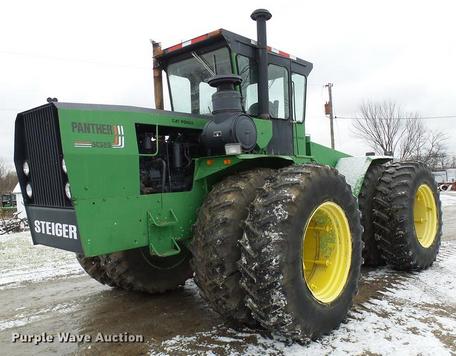

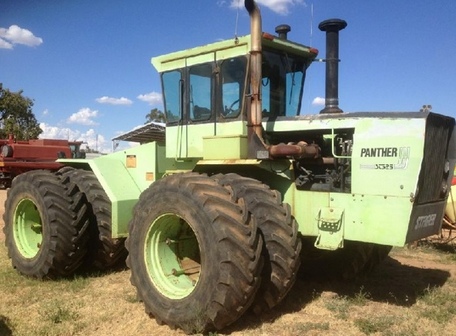

Steiger Panther III PTA-296
Contents:
Production | |
| Manufacturer: | Steiger |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Fargo, North Dakota, USA |
Variants | |
| naturally aspirated | |
| turbocharged |
Steiger Panther III PTA-296 Power | |
| Engine: | 296 hp 220.7 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | articulated power |
| Cab: | Safari Cab standard with air-conditioning. |
| Transmission: | 8-speed power shift with torque converter |
Hydraulics | |
| Type: | open center load sensing |
| Valves: | 4 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540,1000 |
Engine Detail | |
| Cummins V-903 | |
| diesel | |
| 8-cylinder | |
| liquid-cooled | |
| Displacement: | 903 ci 14.8 L |
| Bore/Stroke: | 5.50x4.75 inches 140 x 121 mm |
| Power: | 296 hp 220.7 kW |
| Rated RPM: | 2600 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Allison HT-740 |
| Type: | power shift with torque converter |
| Gears: | 8 forward and 2 reverse |
| Four gears, plus reverse, with two-speed transfer case. Automatic torque converter lock-up. | |
