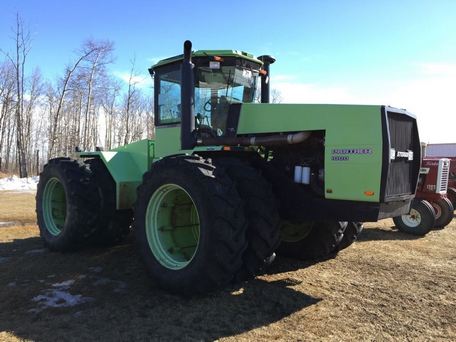

Steiger Panther 1000

Production: 1986

Production
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA

Steiger Panther 1000 Power
Engine:	335 hp 249.8 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	outboard planetary
Steering:	articulated power
Brakes:	hydraulic disc
Cab:	Cab standard with air-conditioning.
Transmission:	12-speed full power shift

Capacity
Fuel:	250 gal 946.3 L
Aux. fuel:	236 gal 893.3 L
Hydraulic system:	26 gal 98.4 L

Hydraulics
Type:	closed center load sensing pressure compensating
Capacity:	26 gal 98.4 L
Pressure:	2500 psi 172.4 bar
Valves:	3 to 4
Pump flow:	40 gpm 151.4 lpm

Tractor hitch
Rear Type:	IV*Optional

Engine Detail
Cummins NTA-855
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	855 ci 14.0 L
Bore/Stroke:	5.50x6.00 inches 140 x 152 mm
Power:	335 hp 249.8 kW
Air cleaner:	dry with centrifugal precleaner
Rated RPM:	2100
Torque:	1131 lb-ft 1533.6 Nm
Torque RPM:	1400
Starter type:	electric

Transmission
Type:	full power shift
Gears:	12 forward and 2 reverse
Clutch:	hydraulic wet disc

Dimensions
Wheelbase:	141.5 inches 359 cm
Length:	281 inches 713 cm
Width:	44 inches 111 cm *Frame
64.25 inches 163 cm *Cab
96 inches 243 cm *Fenders
Height (cab):	139.5 inches 354 cm
Height (exhaust):	149.6 inches 379 cm
Shiping weight:	29000 lbs 13154 kg
Max weight:	40000 lbs 18144 kg
