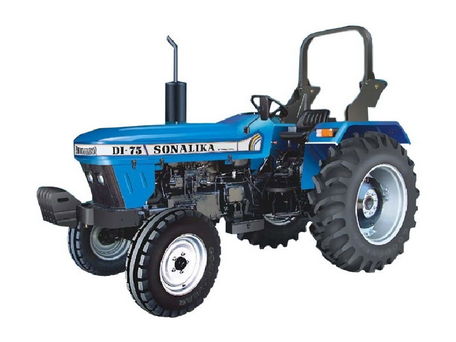

Sonalika DI-75
Contents:
Production | |
| Manufacturer: | Sonalika |
| Factory: | India |
Sonalika DI-75 Power | |
| Engine: | 75 hp 55.9 kW |
| PTO (claimed): | 55 hp 41.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD optional | |
| Steering: | power steering |
| Brakes: | disc |
| Transmission: | 8-speed |
Capacity | |
| Fuel: | 17.2 gal 65.1 L |
| Hydraulic system: | 15.9 gal 60.2 L (2WD) |
| 17.2 gal 65.1 L (4WD) | |
Hydraulics | |
| Capacity: | 15.9 gal 60.2 L (2WD) |
| 17.2 gal 65.1 L (4WD) | |
| Valves: | 2 |
Tractor hitch | |
| Rear Type: | 2 |
| Rear lift: | 3,528 lbs 1600 kg |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 36 |
| Battery volts: | 12 |
| Battery AH: | 88 |
Engine Detail | |
| 4100FLT | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 226.3 ci 3.7 L |
| Bore/Stroke: | 3.937x4.646 inches 100 x 118 mm |
| Power: | 75 hp 55.9 kW |
| Air cleaner: | dry |
| Compression: | 18.4:1 |
| Rated RPM: | 2200 |
| Torque: | 192.5 lb-ft 261.0 Nm |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Oil capacity: | 11.9 qts 11.3 L (2WD) |
| 13.2 qts 12.5 L (4WD) | |
Transmission | |
| Transmission: | constant mesh |
| Gears: | 8 forward and 2 reverse |
| Oil capacity: | 63.4 qts 60.0 L (2WD) |
| 68.7 qts 65.0 L (4WD) | |
Dimensions | |
| Wheelbase: | 87.1 inches 221 cm (2WD) |
| 86.8 inches 220 cm (4WD) | |
| Length: | 153.8 inches 390 cm (2WD) |
| 164.8 inches 418 cm (4WD) | |
| Width: | 76.8 inches 195 cm (2WD) |
| 72.3 inches 183 cm (4WD) | |
| Height: | 71.7 inches 182 cm (steering wheel) |
| 93.5 inches 237 cm (exhaust) | |
| Weight: | 5,402 lbs 2450 kg (2WD) |
| 6,130 lbs 2780 kg (4WD) | |
| Ground clearance: | 16.1 inches 40 cm |
| 14.8 inches 37 cm (4WD) | |
