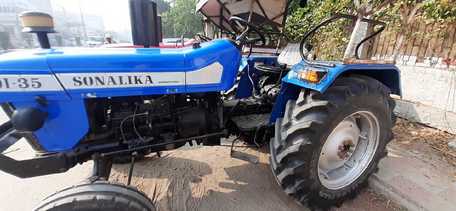

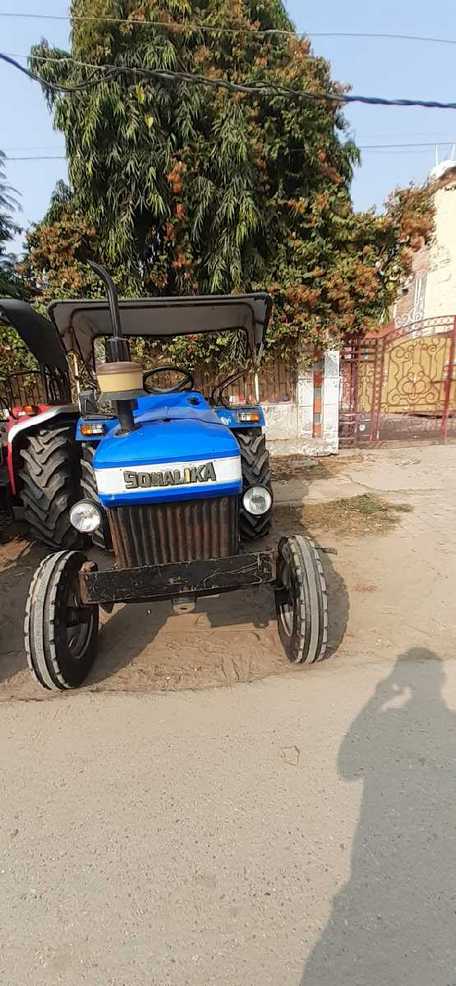

Sonalika DI 735

Production: 2006

Production
Manufacturer:	Sonalika
Factory:	India

Sonalika DI 735 Power
Engine:	38 hp 28.3 kW

Mechanical
Brakes:	disc
Transmission:	8-speed

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2,646 lbs 1200 kg

Power Take-off (PTO)
Rear RPM:	1000

Electrical
Charging amps:	33
Battery volts:	12

Engine Detail
3097 F
diesel
3-cylinder
liquid-cooled
Displacement:	148.8 ci 2.4 L
Bore/Stroke:	3.819x4.331 inches 97 x 110 mm
Power:	38 hp 28.3 kW
Air cleaner:	Oil bath with pre-cleaner and glass dust collector with centrifugal vanes
Compression:	17.4:1
Rated RPM:	2000

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	78.7 inches 199 cm
Length:	140.9 inches 357 cm
Width:	67.7 inches 171 cm
Height:	86.6 inches 219 cm
Weight:	82.7 lbs 37 kg
Ground clearance:	15.2 inches 38 cm
