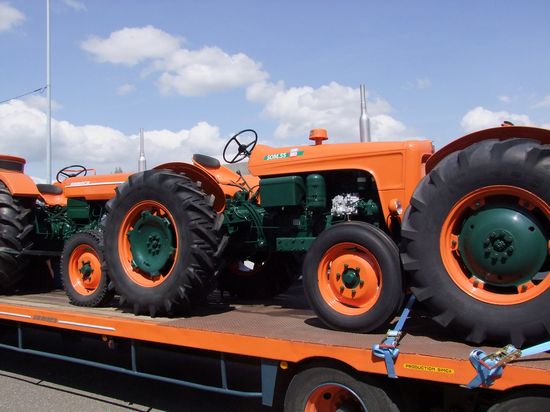

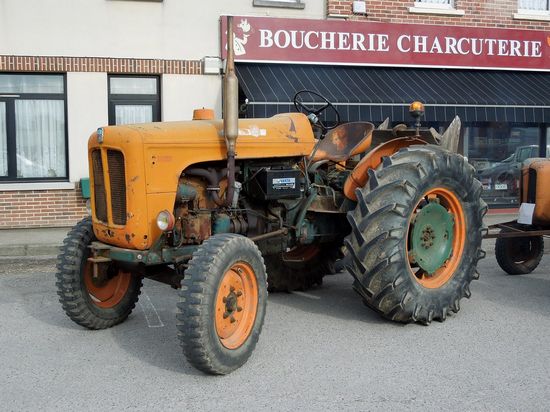

SOMECA Som 55

Production: 1961 - 1963

Production
Manufacturer:	SOMECA
Factory:	France

SOMECA Som 55 Power
Engine:	55 hp 41.0 kW

Mechanical
Chassis:	4x2 2WD
Brakes:	disc
Cab:	Open operator station.
Transmission:	14-speed

Hydraulics
Pump flow:	5.7 gpm 21.6 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Fiat CO1 D/55
diesel
4-cylinder
liquid-cooled
Displacement:	253.6 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	55 hp 41.0 kW
Compression:	15:1
Rated RPM:	1750
Firing order:	1-3-4-2
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Amplicouple
Gears:	14 forward and 4 reverse

Dimensions
Wheelbase:	79.9 inches 202 cm
Length:	140.9 inches 357 cm
Width:	68.9 inches 175 cm
Height (steering wheel):	72.5 inches 184 cm
Height (hood):	61 inches 154 cm
Weight:	5776 lbs 2619 kg
Front tread:	51.2 to 66.9 inches 130 to 169 cm
Rear tread:	51.2 to 78.7 inches 130 to 199 cm
