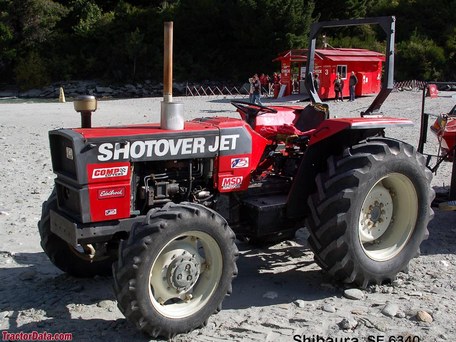

Shibaura SE6340
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Shibaura |
| Type: | Utility tractor |
| Factory: | Matsumoto, Japan |
Variants | |
| 2WD | |
| 4WD |
Shibaura SE6340 Power | |
| Engine: | 63 hp 47.0 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | spur gear |
| Steering: | hydrostatic power |
| Brakes: | mechanical wet disc |
| Cab: | Two-post ROPS. |
| Transmission: | 16-speed synchromesh |
Capacity | |
| Fuel: | 15.85 gal 60.0 L |
| Hydraulic system: | 6.6 gal 25.0 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 6.6 gal 25.0 L |
| Pressure: | 2900 psi 200.0 bar |
| Pump flow: | 8.1 gpm 30.7 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/800/1000 |
| Engine RPM: | 540@2200 800@2200 1000@2200 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
| Battery AH: | 150 |
Engine Detail | |
| Shibaura LER1103 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 208.8 ci 3.4 L |
| Bore/Stroke: | 4.331x4.724 inches 110 x 120 mm |
| Power: | 63 hp 47.0 kW |
| Air cleaner: | dry element |
| Compression: | 17:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 10.6 qts 10.0 L |
| Coolant capacity: | 18 qts 17.0 L |
Transmission | |
| Type: | synchromesh |
| Gears: | 16 forward and 4 reverse |
| Clutch: | 279mm dry disc |
| Oil capacity: | 47.6 qts 45.0 L |
| Four gears, plus reverse, in four ranges. | |
Dimensions | |
| Wheelbase: | 82.7 inches 210 cm |
| Length: | 145.7 inches 370 cm |
| Width: | 73.6 inches 186 cm |
| Weight: | 6002 lbs 2722 kg |
| Ground clearance: | 14.4 inches 36 cm |
| Front tread: | 52.8 to 68.5 inches 134 to 173 cm |
| Rear tread: | 52.8 to 76.4 inches 134 to 194 cm |
