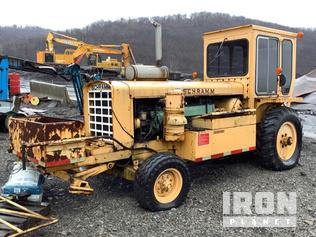

Schramm HT300B

Production
Manufacturer	Schramm
Type	Industrial tractor

Schramm HT300B Power
Engine	120 hp 89.5 kW

Mechanical
Chassis	4x2 2WD
Steering	power
Cab	Cab standard with available heater.

Capacity
Fuel	60 gal 227.1 L
Hydraulic system	18 gal (tractor) 68.1 L
23 gal (backhoe tractor) 87.1 L

Hydraulics
Capacity	18 gal (tractor) 68.1 L
23 gal (backhoe tractor) 87.1 L
Pump flow	26 gpm 98.4 lpm

Electrical
Charging system	alternator
Batteries	4
Battery volts	12
Battery AH	172

Engine Detail
Detroit Diesel 4-71
diesel
4-cylinder
liquid-cooled
Displacement	283.7 ci 4.6 L
Bore/Stroke	4.50x5.00 inches 114 x 127 mm
Power	120 hp 89.5 kW
Air cleaner	dry
Rated RPM	1700
Starter	electric
Starter volts	12
Coolant capacity	56 qts 53.0 L

Transmission
Transmission	45M
Type	hydraulic drive
Gears	infinite forward and reverse (3-range)

Dimensions
Wheelbase	111.9 inches 284 cm
Length	167.6 inches (tractor) 425 cm
280 inches (backhoe tractor) 711 cm
Width	85.5 inches 217 cm
Weight	15500 lbs*Weight with backhoe and counter-weight. 7030 kg
Clearance (front axle)	13 inches 33 cm
Front tread	68 inches 172 cm
Rear tread	67.2 inches 170 cm
