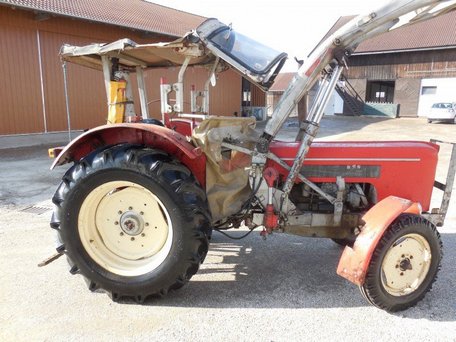

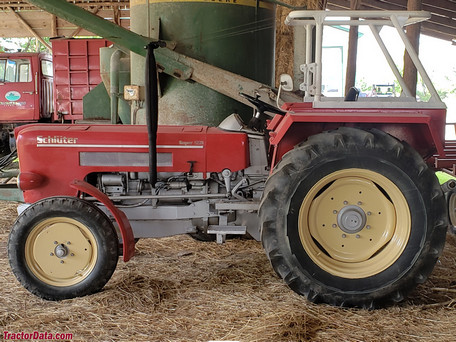

Schluter Super 550S

Production: 1968 - 1970

Contents:

Production

Manufacturer:Schluter

Schluter Super 550S Power

Engine:58 hp 43.3 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD optional
Steering:mechanical
Brakes:drum
Transmission:8-speed

Hydraulics

Total flow:5 gpm 18.9 lpm
6.9 gpm 26.1 lpm

Tractor hitch

Rear lift:4,520 lbs 2050 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

SD 100 W 4
4-cylinder
Displacement:239.6 ci 3.9 L
Bore/Stroke:3.937x4.921 inches 100 x 125 mm
Power:58 hp 43.3 kW
Rated RPM:1800
Torque:166.0 lb-ft 225.1 Nm
Torque RPM:1300

Transmission

Gears:8 forward and 4 reverse

Dimensions

Wheelbase:89.4 inches 227 cm
Length:152.4 inches 387 cm
Height:96.1 inches 244 cm
Weight:6,471 lbs 2935 kg (2WD)
7,332 lbs 3325 kg (4WD)
