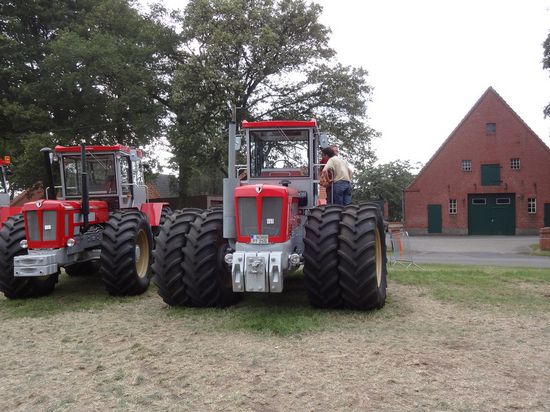

Schluter Profi-Trac 2500 VL

Production: 1976 - 1980

Production
Manufacturer:	Schluter
Type:	Four-wheel Drive (4WD) tractor

Schluter Profi-Trac 2500 VL Power
Engine:	240 hp 179.0 kW

Mechanical
Chassis:	4x4 4WD
Steering:	power four-wheel
Brakes:	dry disc
Cab:	Cab standard.
Transmission:	18-speed

Hydraulics
Total flow:	10.6 gpm 40.1 lpm
11.9 gpm 45.0 lpm

Tractor hitch
Rear lift:	12,789 lbs 5801 kg
16,096.5 lbs 7301 kg *Optional

Power Take-off (PTO)
Rear RPM:	1000

Engine Detail
MAN D 2566 ME
diesel
6-cylinder
Displacement:	696.4 ci 11.4 L
Bore/Stroke:	4.921x6.102 inches 125 x 155 mm
Power:	240 hp 179.0 kW
Rated RPM:	2200
Torque:	621.8 lb-ft 843.2 Nm
Torque RPM:	1500

Transmission
Gears:	18 forward and 4 reverse

Dimensions
Wheelbase:	112.2 inches 284 cm
Length:	242.1 inches 614 cm
Height:	136.2 inches 345 cm
Weight:	24,255 lbs 11002 kg
