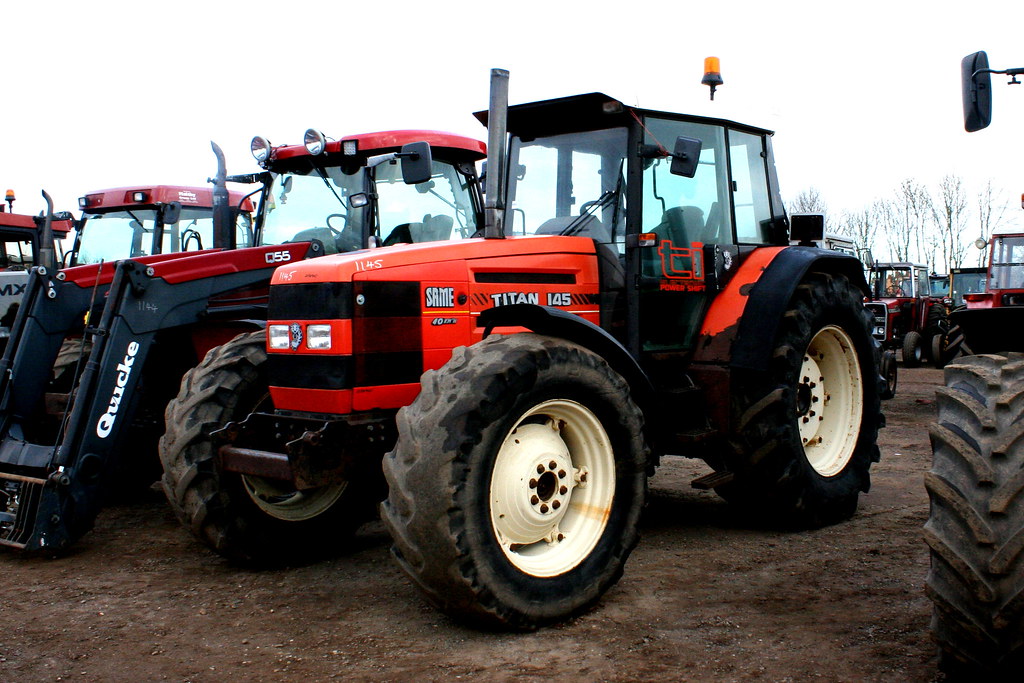

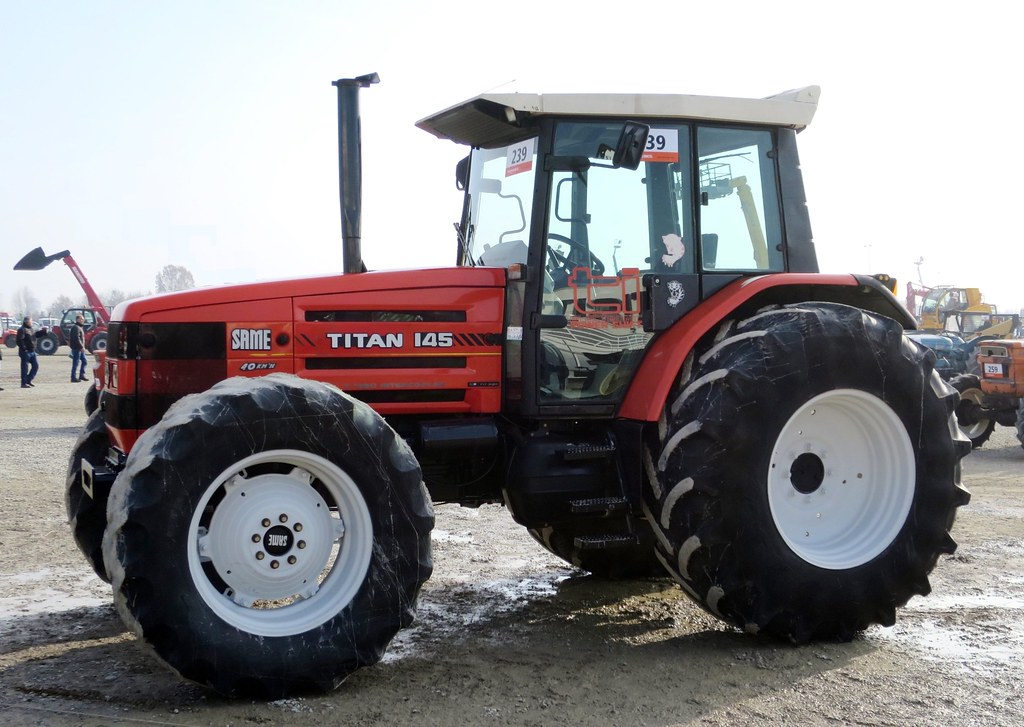

SAME Titan 145

Production: 1995 - 1998

Contents:

Production

Manufacturer:SAME

SAME Titan 145 Power

Engine:145 hp 108.1 kW

Mechanical

Chassis:4x4 MFWD 4WD
Transmission:27-speed

Hydraulics

Pump flow:15.9 gpm 60.2 lpm

Tractor hitch

Rear lift:18963 lbs 8601 kg

Power Take-off (PTO)

Rear RPM:540, 1000

Engine Detail

SAME
turbocharged diesel
6-cylinder
Displacement:366.12 ci 6.0 L
Bore/Stroke:4.1338x4.54 inches 105 x 115 mm
Power:145 hp 108.1 kW
Rated RPM:2350

Transmission

Gears:27 forward and reverse

Dimensions

Wheelbase:112.20 inches 284 cm
Length:185.83 inches 472 cm
Height:112.20 inches 284 cm
Weight:12678 lbs 5750 kg
