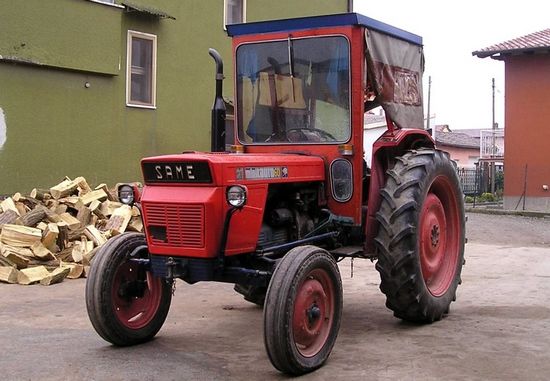

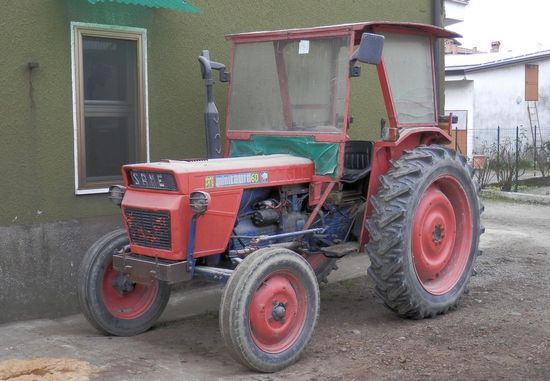

SAME Minitauro 60

Production: 1971 - 1981

Production
Manufacturer:	SAME
Type:	Utility tractor

SAME Minitauro 60 Power
Engine:	55 hp 41.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Cab:	Open operator station. Four-post ROPS available.
Transmission:	8-speed synchronized

Hydraulics
Pump flow:	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type:	II
Rear lift:	4321 lbs 1960 kg

Power Take-off (PTO)
Rear RPM:	540

Engine Detail
SAME 1053
diesel
3-cylinder
air-cooled
Displacement:	190.2 ci 3.1 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	55 hp 41.0 kW
Fuel system:	direct injection
Compression:	17:1
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Type:	synchronized
Gears:	8 forward and 4 reverse
Clutch:	dry disc

Dimensions
2WD Wheelbase:	78 inches 198 cm
4WD Wheelbase:	77.2 inches 196 cm
2WD Length:	121.1 inches 307 cm
4WD Length:	122.2 inches 310 cm
Width:	64.5 inches 163 cm
Height (steering wheel):	57.9 inches 147 cm
Height (hood):	51.2 inches 130 cm
2WD Weight:	4211 lbs 1910 kg
4WD Weight:	4542 lbs 2060 kg
2WD Ground clearance:	13 inches 33 cm
4WD Ground clearance:	10.2 inches 25 cm
2WD Front tread:	47.2 to 74.8 inches 119 to 189 cm
4WD Front tread:	52.8 inches 134 cm
Rear tread:	47.2 to 74.8 inches 119 to 189 cm
