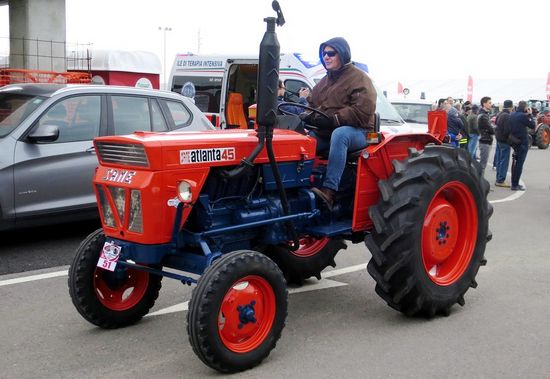

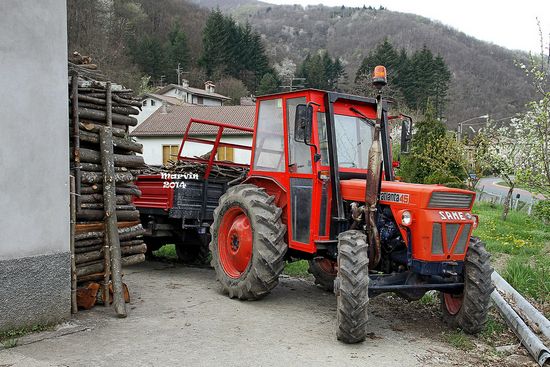

SAME Atlanta 45

Production: 1965 - 1969

Production
Manufacturer:	SAME
Type:	Utility tractor

SAME Atlanta 45 Power
Engine:	44 hp 32.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Open operator station.
Transmission:	6-speed gear

Engine Detail
SAME DA 954/V
diesel
4-cylinder
air-cooled V4
Displacement:	207.5 ci 3.4 L
Bore/Stroke:	3.74x4.72 inches 95 x 120 mm
Power:	44 hp 32.8 kW
Compression:	17:1
Rated RPM:	1700
Starter type:	electric

Transmission
Type:	gear
Gears:	6 forward and 2 reverse

Dimensions
2WD Wheelbase:	72.1 inches 183 cm
4WD Wheelbase:	67.7 inches 171 cm
2WD Length:	109.5 inches 278 cm
4WD Length:	109.8 inches 278 cm
2WD Width:	58.7 inches 149 cm
4WD Width:	63 inches 160 cm
Height:	57.5 inches 146 cm
2WD Weight:	3483 lbs 1579 kg
4WD Weight:	3814 lbs 1730 kg
2WD Ground clearance:	16.9 inches 42 cm
4WD Ground clearance:	9.5 inches 24 cm
2WD Front tread:	47.2 to 74.8 inches 119 to 189 cm
4WD Front tread:	48.4 inches 122 cm
2WD Rear tread:	47.2 to 74.8 inches 119 to 189 cm
4WD Rear tread:	51.2 inches 130 cm
