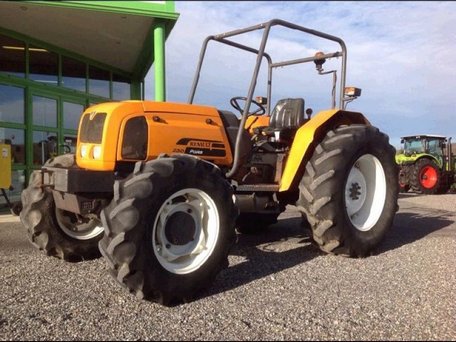

Renault Pales 230

Production: 1998 - 2004

Contents:

Production

Manufacturer:Renault

Renault Pales 230 Power

Engine:67 hp 50.0 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD optional
Steering:hydrostatic power
Brakes:wet disc
Cab:cab optional
Transmission:12-speed

Hydraulics

Total flow:9.9 gpm 37.5 lpm

Tractor hitch

Rear lift:8,048 lbs 3650 kg

Power Take-off (PTO)

Rear RPM:540/750/ground

Engine Detail

Deutz F4L 912
diesel
4-cylinder
Displacement:230.0 ci 3.8 L
Bore/Stroke:3.937x4.724 inches 100 x 120 mm
Power:67 hp 50.0 kW
Rated RPM:2350
Torque:171.1 lb-ft 232.0 Nm
Torque RPM:1600

Transmission

Gears:12 forward and reverse

Dimensions

Wheelbase:83.1 inches 211 cm (2WD)
87.8 inches 223 cm (4WD)
Length:147.2 inches 373 cm
Height:92.9 inches 235 cm
Weight:5,501 lbs 2495 kg (2WD)
5,645 lbs 2560 kg (4WD)
