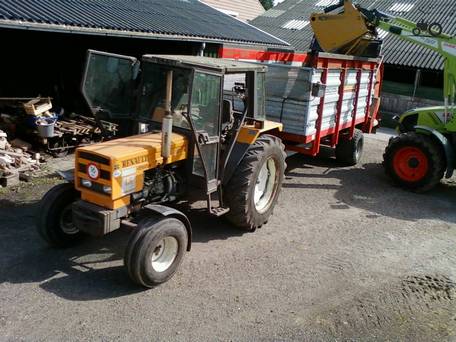

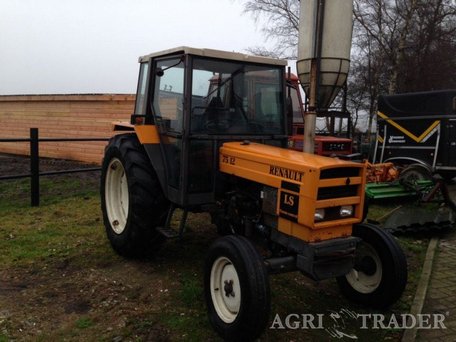

Renault 75-12 LS

Production: 1985 - 1989

Contents:

Production

Manufacturer:Renault

Variants

4WD

Renault 75-12 LS Power

Engine:70 hp 52.2 kW

Mechanical

Chassis:4x2 2WD
Steering:hydrostatic power
Brakes:dry disc
Cab:standard
Transmission:12-speed

Hydraulics

Total flow:8.2 gpm 31.0 lpm

Tractor hitch

Rear lift:8,269 lbs 3750 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

MWM D226-4
diesel
4-cylinder
Displacement:253.6 ci 4.2 L
Bore/Stroke:4.134x4.724 inches 105 x 120 mm
Power:70 hp 52.2 kW
Rated RPM:2350
Torque:191.8 lb-ft 260.1 Nm
Torque RPM:1500

Transmission

Gears:12 forward and reverse

Dimensions

Wheelbase:94.1 inches 239 cm
Length:159.8 inches 405 cm
Height:97.6 inches 247 cm
Weight:6,593 lbs 2990 kg
