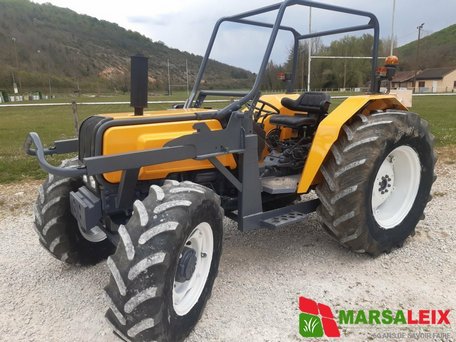

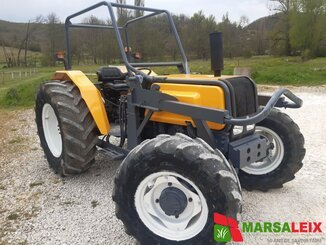

Renault 70-14 LB

Production: 1987 - 1998

Production
Manufacturer:	Renault
Type:	Utility tractor

Variants

2WD

Renault 70-14 LB Power
Engine:	65.7 hp 49.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Four-post ROPS. Cab optional.
Transmission:	12-speed Four gears in three ranges with mechanical shuttle.

Hydraulics
Pressure:	2611 psi 180.0 bar
Valves:	1
Pump flow:	9.6 gpm 36.3 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	7666 lbs 3477 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Engine Detail
Deutz F4 L 912
diesel
4-cylinder
air-cooled
Displacement:	230.1 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Power:	65.7 hp 49.0 kW
Rated RPM:	2350
Torque:	168.9 lb-ft 229.0 Nm
Torque RPM:	1600
Starter type:	electric

Transmission
Type:	Four gears in three ranges with mechanical shuttle.
Gears:	12 forward and reverse
Clutch:	dry disc

Dimensions
Length:	140.2 inches 356 cm
Width:	67.7 inches 171 cm *Minimum width.
Height (ROPS):	92.9 inches 235 cm
Height (cab):	91.3 inches 231 cm
Weight:	5622 lbs 2550 kg
Max weight:	10362 lbs 4700 kg
Front tread:	47.6 to 72.8 inches 120 to 184 cm
Rear tread:	51.2 to 74.8 inches 130 to 189 cm
