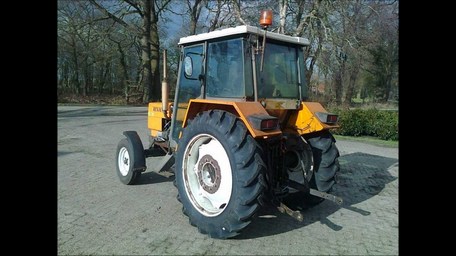

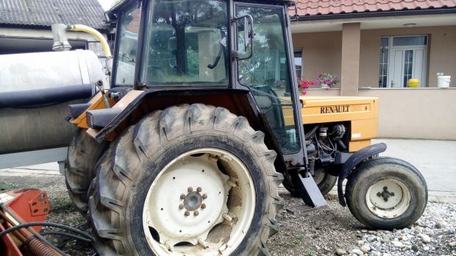

Renault 681S
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Renault |
| Type: | Utility tractor |
Renault 681S Power | |
| Engine: | 68 hp 50.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | dry disc |
| Cab: | ROPS. Cab optional. |
| Transmission: | 12-speed mechanical shuttle |
Hydraulics | |
| Type: | open center |
| Pressure: | 2611 psi 180.0 bar |
| Total flow: | 8.0 gpm 30.3 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 8489 lbs 3850 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 551@2350 642@2350 (540/1000) 1099@2350 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 35 |
| Battery volts: | 12 |
| Battery AH: | 80 |
Engine Detail | |
| MWM D227-4 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 230 ci 3.8 L |
| Bore/Stroke: | 3.875x4.724 inches 98 x 120 mm |
| Power: | 68 hp 50.7 kW |
| Compression: | 17.8:1 |
| Rated RPM: | 2350 |
| Torque: | 169.6 lb-ft 230.0 Nm |
| Torque RPM: | 1500 |
| Starter volts: | 12 |
Transmission | |
| Type: | mechanical shuttle |
| Gears: | 12 forward and reverse |
| Clutch: | dry disc |
| Four gears in three ranges with shuttle. | |
Dimensions | |
| 2WD Wheelbase: | 93.3 inches 236 cm |
| 4WD Wheelbase: | 94.9 inches 241 cm |
| 2WD Length: | 150 inches 381 cm |
| 4WD Length: | 156.3 inches 397 cm |
| Width: | 64.6 inches 164 cm *Minimum width. |
| Height (steering wheel): | 64.2 inches 163 cm |
| Height (cab): | 96.1 inches 244 cm |
| 2WD Front tread: | 51.2 to 74.8 inches 130 to 189 cm |
| 4WD Front tread: | 53.2 to 74.8 inches 135 to 189 cm |
| Rear tread: | 51.2 to 78.8 inches 130 to 200 cm |
