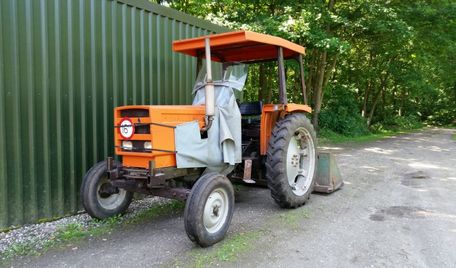

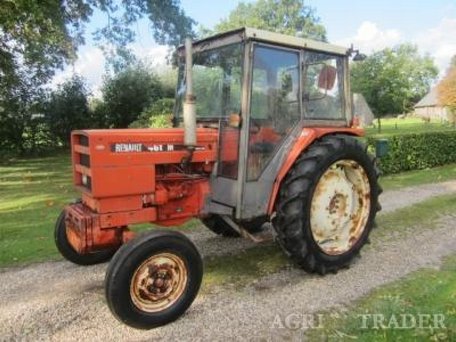

Renault 461M

Production: 1977 - 1985

Contents:

Production

Manufacturer:Renault

Renault 461M Power

Engine:45 hp 33.6 kW

Mechanical

Chassis:4x2 2WD
Steering:mechanical
hydrostatic power
Brakes:dry disc
Cab:optional
Transmission:10-speed

Hydraulics

Total flow:6.6 gpm 25.0 lpm
7.9 gpm 29.9 lpm

Tractor hitch

Rear lift:4,410 lbs 2000 kg
5,513 lbs 2500 kg

Power Take-off (PTO)

Rear RPM:540/750

Engine Detail

MWM D327-3
diesel
3-cylinder
Displacement:172.5 ci 2.8 L
Bore/Stroke:3.875x4.724 inches 98 x 120 mm
Power:45 hp 33.6 kW
Rated RPM:2150
Torque:124.7 lb-ft 169.1 Nm
Torque RPM:1500

Transmission

Gears:10 forward and 2 reverse

Dimensions

Wheelbase:78.0 inches 198 cm
Length:132.3 inches 336 cm
Height:93.3 inches 236 cm
Weight:4,950 lbs 2245 kg
