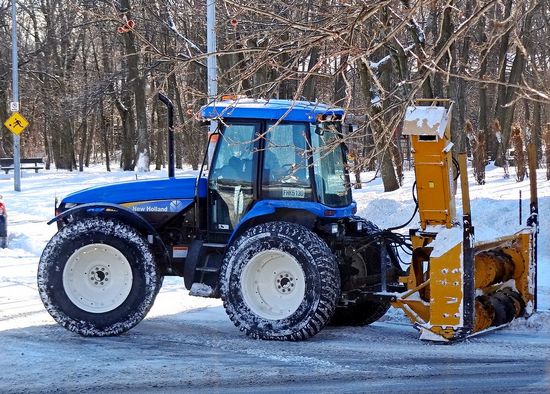

New Holland TV6070

Production: 2008 - 2014

Production
Manufacturer:	New Holland

New Holland TV6070 Power
Engine (gross):	155 hp 115.6 kW
PTO (claimed):	105 hp 78.3 kW
Drawbar (tested):	80.25 hp 59.8 kW
PTO (tested):	115.85 hp 86.4 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	hydrostatic power
Brakes:	hydraulic caliper disc
Cab:	Cab standard with air-conditioning.
Transmission:	hydrostatic

Capacity
Fuel:	55 gal 208.2 L
Hydraulic system:	13.5 gal 51.1 L

Hydraulics
Type:	closed center load sensing
Capacity:	13.5 gal 51.1 L
Rear valves:	3
Front valves:	2
Total flow:	29.5 gpm 111.7 lpm
35 gpm 132.5 lpm (optional)

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	6500 lbs 2948 kg
8700 lbs 3946 kg *Optional
Front Hitch:	II*Optional
Front lift (at 24"/610mm):	4000 lbs 1814 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Front RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Batteries:	2
Battery CCA:	950
Battery volts:	12
Battery Group:	31

Engine Detail
Iveco FPT
turbocharged intercooled diesel
6-cylinder 12-valve
liquid-cooled
Displacement:	411 ci 6.7 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Emissions:	Tier III
Power (gross):	155 hp 115.6 kW
Air cleaner:	dry
Compression:	17.5:1
Rated RPM:	2200
Firing order:	1-5-3-6-2-4
Starter volts:	12
Oil capacity:	20 qts 18.9 L
Coolant capacity:	29 qts 27.4 L

Transmission
Type:	hydrostatic
Gears:	infinite (8-range) forward and reverse

Dimensions
Wheelbase:	118.1 inches 299 cm
Length:	183.9 inches 467 cm (tires)
214.2 inches 544 cm (overall)
Width:	99.6 inches 252 cm
Operating weight:	15,205 lbs 6896 kg
Clearance (drawbar):	14.3 inches 36 cm
