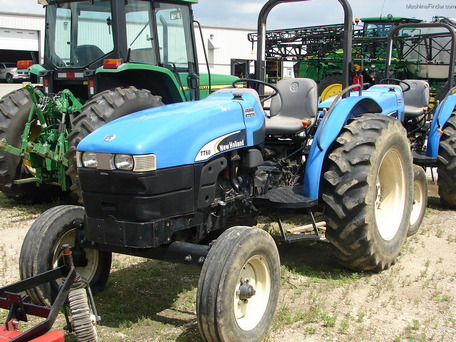

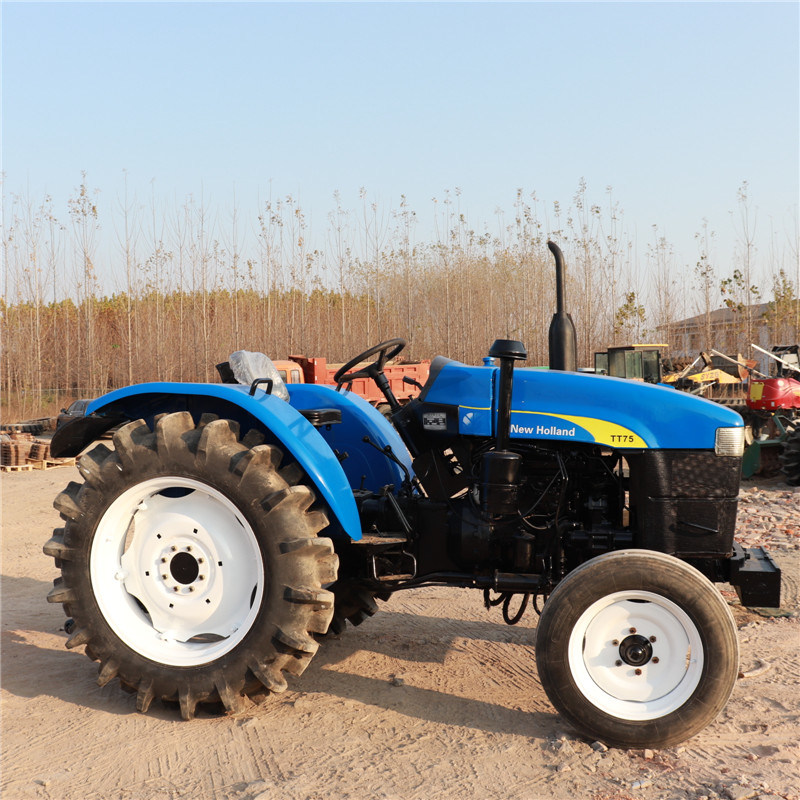

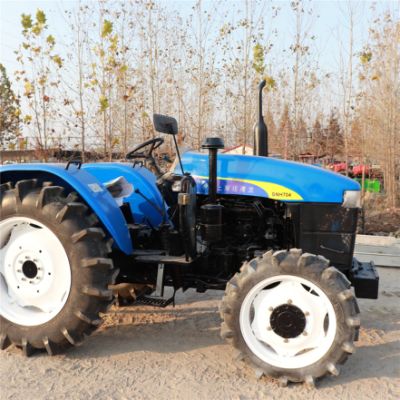

New Holland TT75A

Production: 2007 - 2008

Production
Manufacturer:	New Holland
Type:	Compact Utility tractor
Factory:	Dublin, Georgia, USA

New Holland TT75A Power
Engine (gross):	75 hp 55.9 kW
PTO (claimed):	62 hp 46.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	bull gear
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Platform with two-post folding ROPS.
Transmission:	8-speed partially synchronized

Hydraulics
Type:	open center
Pressure:	2755 psi 190.0 bar
Valves:	0 to 2
Pump flow:	10.8 gpm 40.9 lpm
Total flow:	19.3 gpm 73.1 lpm
Steering flow:	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type:	II/I
Control:	position control
top-link draft control*Optional
Rear lift (at ends):	3410 lbs 1546 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	mechanical dry disc
Rear RPM:	540 (1.375)
Engine RPM:	540@1967

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
Battery CCA:	800
Battery volts:	12

Engine Detail
Iveco
diesel
4-cylinder
liquid-cooled
Displacement:	238 ci 3.9 L
Bore/Stroke:	4.094x4.528 inches 104 x 115 mm
Emissions:	Tier II
Power (gross):	75 hp 55.9 kW
Air cleaner:	dual dry elements
Pre-heating:	thermostart
Rated RPM:	2500
Starter volts:	12

Transmission
Type:	partially synchronized
Gears:	8 forward and 2 reverse
Clutch:	279.4mm dry disc

Dimensions
2WD Shiping weight:	4740 lbs 2150 kg
4WD Shiping weight:	5198 lbs 2357 kg
Rear axle:	Flange
2WD Front tread:	56.4 to 74 inches 143 to 187 cm
4WD Front tread:	56.9 to 79.6 inches 144 to 202 cm
