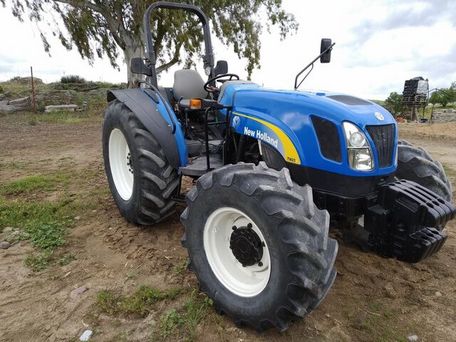

New Holland TN95A

Production: 2004 - 2008

Production
Manufacturer:	New Holland
Type:	Utility tractor
Factory:	Jesi, Italy

Variants

ROPS

cab

narrow/orchard

New Holland TN95A Power
Engine (gross):	90 hp 67.1 kW
PTO (claimed):	77 hp 57.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	differential wet disc
Cab:	ROPS. Canopy optional
Transmission:	12-speed partially synchronized with power shuttle

Hydraulics
Type:	open center
Pressure:	2755 psi 190.0 bar
Valves:	1 to 4
Pump flow:	15 gpm 56.8 lpm
Steering flow:	9.4 gpm 35.6 lpm

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	3,960 lbs 1796 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery CCA:	730
Battery volts:	12

Engine Detail
Iveco
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	274 ci 4.5 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Emissions:	Tier 2
Power (gross):	90 hp 67.1 kW
Fuel use:	5.20 gal/hour 19.7 l/hour
Air cleaner:	dual paper elements
Compression:	17.5:1
Rated RPM:	2300
Torque:	269 lb-ft 364.8 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Synchro Command
Type:	partially synchronized with power shuttle
Gears:	12 forward and reverse
Clutch:	six 113mm wet organic plates
Left-hand clutchless power shuttle

Dimensions
Wheelbase:	83.7 inches 212 cm
Length:	157.5 inches 400 cm
Width:	67.2 inches 170 cm
Height (ROPS):	95.1 inches 241 cm
75.1 inches 190 cm (folded)
Shiping weight:	6,118 lbs 2775 kg
