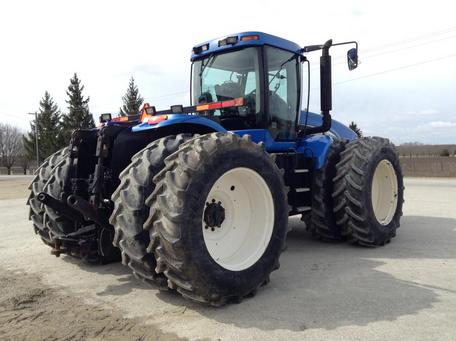

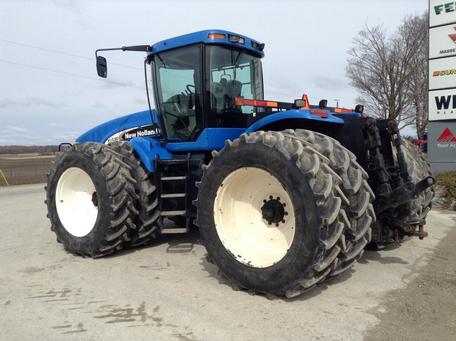

New Holland TJ330
Contents:
Production | |
| Manufacturer: | New Holland |
| Factory: | Fargo, North Dakota, USA |
New Holland TJ330 Power | |
| Engine: | 330 hp 246.1 kW |
| PTO (claimed): | 330 hp 246.1 kW |
| Drawbar (tested): | 258.63 hp 192.9 kW |
| PTO (tested): | 323.31 hp 241.1 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | hydrostatic power |
| Brakes: | integral hydraulic wet disc |
| Cab: | Cab standard with heat and air-conditioning |
| Transmissions: | 16-speed full power shift |
| 24-speed full synchro shift | |
Hydraulics | |
| Type: | closed center load sensing (CCLS) |
| Pressure: | 2000 psi 137.9 bar |
| Valves: | 4 to 9 |
| Pump flow: | 33 gpm 124.9 lpm |
| Total flow: | 40 gpm 151.4 lpm |
| 55 gpm 208.2 lpm (optional) | |
| 90 gpm 340.7 lpm (optional MegaFlow) | |
Tractor hitch | |
| Rear Type: | IVN/III (optional) |
| Rear lift (at 24"/610mm): | 15,669 lbs 7107 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (optional) |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 150 |
| 175 (optional) | |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 1000 |
Engine Detail | |
| CDC | |
| turbocharged aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 540 ci 8.9 L |
| Bore/Stroke: | 4.488x5.689 inches 114 x 145 mm |
| Power: | 330 hp 246.1 kW |
| Maximum Power: | 363 hp 270.7 kW |
| Compression: | 16.6:1 |
| Rated RPM: | 2000 |
| Torque: | 1181 lb-ft 1601.4 Nm |
| Torque RPM: | 1400 |
| Starter: | electric |
| Starter volts: | 24 |
| Oil capacity: | 29.3 qts 27.7 L |
| Coolant capacity: | 50 qts 47.3 L |
Dimensions | |
| Wheelbase: | 139 inches 353 cm |
| Length: | 276 inches 701 cm |
| Height: | 142 inches 360 cm |
| Operating weight: | 32,120 lbs 14569 kg |
| Max weight: | 39,600 lbs 17962 kg |
