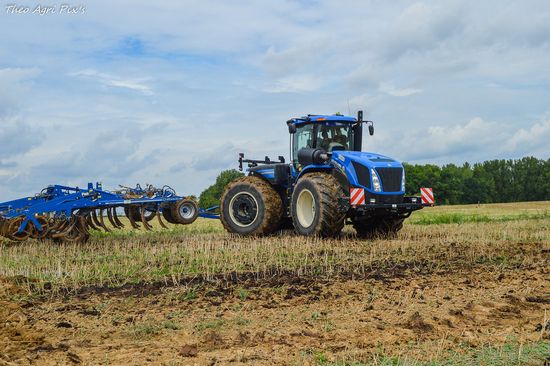

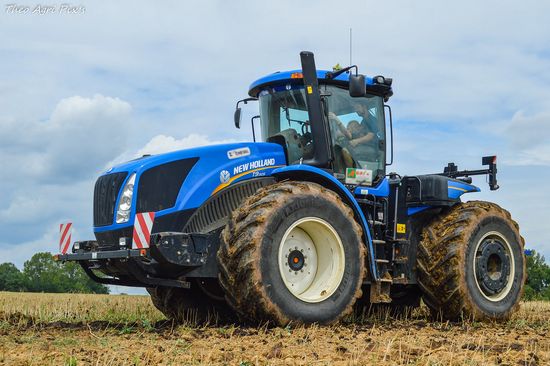

New Holland T9.505

Production: 2011 - 2014

Production
Manufacturer:	New Holland
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA

New Holland T9.505 Power
Engine:	457 hp 340.8 kW
Drawbar (tested):	365.60 hp 272.6 kW
PTO (tested):	451.28 hp 336.5 kW

Mechanical
Chassis:	4x4 articulated 4WD
Brakes:	hydraulic wet disc
Cab:	Cab standard.
Transmission:	16-speed full power shift

Hydraulics
Type:	closed center load sensing
Pressure:	2000 psi 137.9 bar
Rear valves:	4 to 8
Pump flow:	45 gpm 170.3 lpm
Total flow:	42 gpm 159.0 lpm
57 gpm 215.7 lpm
98 gpm 370.9 lpm (MegaFlow)
113 gpm 427.7 lpm (MegaFlow)

Tractor hitch
Rear Type:	4N/3
Rear lift (at 24"/610mm):	20,000 lbs 9072 kg

Power Take-off (PTO)
Rear PTO:	optional
Rear RPM:	1000 (1-3/4)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	200
Batteries:	2
Battery CCA:	1000
Battery volts:	12

Engine Detail
FPT
wastegate turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	787 ci 12.9 L
Bore/Stroke:	5.315x5.906 inches 135 x 150 mm
Emissions:	Interim Tier 4
Emission control:	selective catalytic reduction (SCR)
Power:	457 hp 340.8 kW
Maximum Power:	502 hp 374.3 kW
Rated RPM:	2100
Starter:	electric
Starter volts:	24
Oil capacity:	32.7 qts 30.9 L
Coolant capacity:	84.4 qts 79.9 L

Transmission
Type:	full power shift
Gears:	16 forward and 2 reverse

Dimensions
Wheelbase:	148 inches 375 cm
Length:	295 inches 749 cm
Width:	36.5 inches 92 cm (frame)
Height:	144.2 inches 366 cm
Front axle:	4.5 by 120 inches 114 by 3048 mm
Front axle:	5 by 120 inches 127 by 3048 mm
