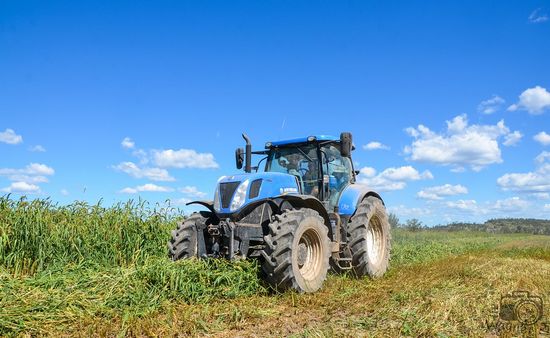

New Holland T7.250
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | New Holland (a part of CNH) |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
New Holland T7.250 Power | |
| Engine (gross): | 200 hp 149.1 kW |
| Engine (max): | 250 hp 186.4 kW |
| PTO (claimed): | 165 hp 123.0 kW |
| Drawbar (tested): | 155.2 hp 115.7 kW |
| PTO (tested): | 198.7 hp 148.2 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| engine exhaust brake (optional) | |
| Trailer brakes: | hydraulic (optional) |
| pneumatic (optional) | |
| Cab: | Horizon cab standard with air-conditioning. Intellisteer optional |
| Transmissions: | 18-speed full power shift |
| 19-speed full power shift | |
| continuously-variable transmission (CVT) | |
Hydraulics | |
| Type: | closed center load sensing |
| Rear valves: | 3 to 5 |
| Mid valves: | 3 (optional) |
| Pump flow: | 32 gpm 121.1 lpm |
| 39.5 gpm 149.5 lpm (optional) | |
| Steering flow: | 17 gpm 64.3 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | electronic draft control |
| Rear lift (at ends): | 12787 lbs 5800 kg |
| Rear lift (at 24"/610mm): | 10746 lbs 4874 kg |
| Rear Arms: | flex link ends |
| Front Hitch: | optional |
| Front lift (at ends): | 8344 lbs 3784 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 540E/1000 | |
| 1000/1000E | |
| Front PTO: | independent (optional) |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 150 |
| 200 (optional) | |
| Battery CCA: | 1300 |
| Battery volts: | 12 |
| Battery AH: | 176 |
Engine Detail | |
| FPT | |
| turbocharged intercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 411 ci 6.7 L |
| Bore/Stroke: | 4.09x5.20 inches 104 x 132 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (EC 97/98): | 200 hp 149.1 kW |
| Maximum Power (EC 97/68): | 250 hp 186.4 kW |
| Fuel system: | high pressure common rail |
| Cooling system: | viscous fan |
| reversible fan (optional) | |
| Rated RPM: | 2200 |
| Torque: | 684 lb-ft 927.5 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 113.5 inches 288 cm |
| 117.2 inches 297 cm (SuperSteer) | |
| Length: | 227.3 inches 577 cm |
| Width: | 97.2 inches 246 cm (min) |
| Height (cab): | 119.7 inches 304 cm |
| Height (exhaust): | 122.6 inches 311 cm |
| Ground clearance: | 18.6 inches 47 cm |
| Front axle: | 4WD |
| Front axle: | TerraLock |
| Front axle: | SuperSteer |
| Rear axle: | Flange |
| Rear axle: | Bar: 98 inch length 2489 mm |
| Rear axle: | Bar: 112 inch length 2844 mm |
| Rear axle: | Bar: 119 inch length 3022 mm |
