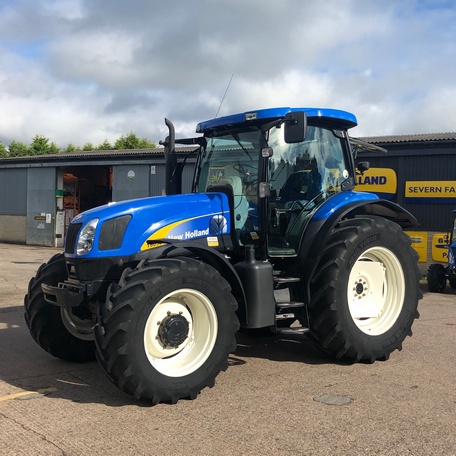

New Holland T6030 Plus
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Utility tractor |
Variants | |
| economy | |
| mid-level | |
| premium |
New Holland T6030 Plus Power | |
| Engine (gross): | 115 hp 85.8 kW |
| PTO (claimed): | 95 hp 70.8 kW |
| Drawbar (tested): | 80.2 hp 59.8 kW |
| PTO (tested): | 107.8 hp 80.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| SuperSteer optional | |
| Brakes: | hydraulic wet disc |
| Cab: | Horizon cab standard. |
| Transmission: | 16-speed partial power shift |
Capacity | |
| Fuel: | 66 gal 249.8 L |
| SuperSteer Fuel: | 60.8 gal 230.1 L |
| Hydraulic system: | 16.3 gal 61.7 L |
Hydraulics | |
| Type: | closed center load-sensing |
| Capacity: | 16.3 gal 61.7 L |
| Valves: | 2 to 4 |
| Pump flow: | 26.5 gpm 100.3 lpm |
| Total flow: | 37 gpm 140.0 lpm |
| Steering flow: | 10.5 gpm 39.7 lpm |
Tractor hitch | |
| Rear Type: | II (mech) |
| II/IIIN (elec) | |
| Control: | mechanical lower link draft sensing, electronic optional |
| Rear lift: | 9285 lbs 4211 kg |
| 9620 lbs 4363 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Charging volts: | 12 |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged air-to-air aftercooled diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled | |
| Displacement: | 411 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Power (gross): | 115 hp 85.8 kW |
| Fuel system: | mechanical rotary pump |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 16 qts 15.1 L |
Transmission | |
| Transmission: | ElectroShift |
| Type: | partial power shift |
| Gears: | 16 forward and reverse |
| Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting. | |
Dimensions | |
| 2WD Wheelbase: | 104.4 inches 265 cm |
| 4WD Wheelbase: | 104.7 inches 265 cm |
| Height (cab): | 114.1 inches 289 cm |
| Height (exhaust): | 113.2 inches 287 cm |
| 2WD Shiping weight: | 10890 lbs 4939 kg |
| 4WD Shiping weight: | 11336 lbs 5142 kg |
| Front axle: | Heavy-duty 2WD |
| Front axle: | FWD |
| Front axle: | FWD TerraLock |
| Front axle: | SuperSteer FWD TerraLock |
| Front axle: | TerraGlide FWD TerraLock |
| 2WD Front tread: | 63.2 to 86.2 inches 160 to 218 cm |
| 4WD Front tread: | 62.2 to 92 inches 157 to 233 cm |
