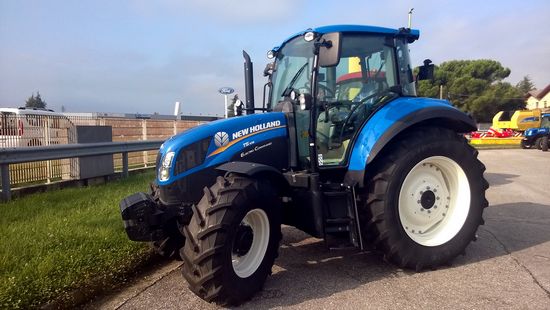

New Holland T5.105
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Utility tractor |
Variants | |
| base model | |
| premium model |
New Holland T5.105 Power | |
| Engine (gross): | 106 hp 79.0 kW |
| PTO (claimed): | 91 hp 67.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | Electro-hydraulic rear. Limited slip front. |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 12-speed power shuttle |
| 20-speed creeper power shuttle | |
| 24-speed two-speed power shift | |
Hydraulics | |
| Type: | open center gear pumps |
| Valves: | 2 to 3 |
| Pump flow: | 16.1 gpm 60.9 lpm |
| 21.1 gpm 79.9 lpm (optional) | |
| Steering flow: | 10 gpm 37.9 lpm |
| 11.4 gpm 43.1 lpm (optional) | |
Tractor hitch | |
| Rear Type: | II |
| Control: | electronic draft control |
| Rear lift (at 24"/610mm): | 6392 lbs 2899 kg |
| 10452 lbs 4741 kg (optional) | |
| Rear Arms: | flexible lower link ends with telescopic stabilizers |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/1000 |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| FPT F5D | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 207 ci 3.4 L |
| Emissions: | Interim Tier IV |
| Emission control: | cooled exhaust gas recirculation (CEGR) with diesel particulate filter (DPF) |
| Power (gross): | 106 hp 79.0 kW |
| Pre-heating: | grid heater |
| Rated RPM: | 2300 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 92.5 inches 234 cm |
| Length: | 163.8 inches 416 cm |
| Width: | 82.6 inches 209 cm |
| Height (cab): | 105.4 inches 267 cm |
| Weight: | 9370 lbs 4250 kg |
