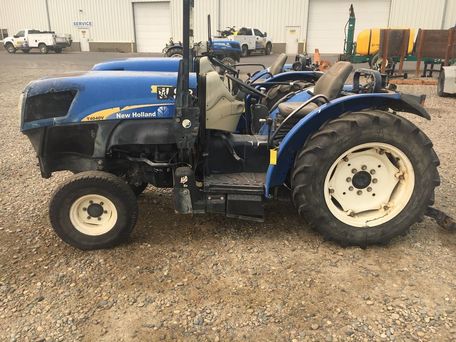

New Holland T4040V

Production
Manufacturer:	New Holland
Factory:	Jesi, Italy

Variants

conventional chassis

narrow chassis

ultra-narrow chassis

New Holland T4040V Power
Engine (gross):	87 hp 64.9 kW
PTO (claimed):	72 hp 53.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Cab:	Platform with ROPS. Cab optional with heat and air-conditioning.
Transmissions:	16-speed mechanical shuttle
16-speed power shuttle

Hydraulics
Type:	open center
Pressure:	2,755 psi 190.0 bar
Valves:	2 to 3
Pump flow:	17.2 gpm 65.1 lpm
Steering flow:	9.2 gpm 34.8 lpm

Power Take-off (PTO)
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	120
Battery CCA:	800
Battery volts:	12

Engine Detail
New Holland F5C
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	195 ci 3.2 L
Power (gross):	87 hp 64.9 kW
Air cleaner:	dual dry element
Rated RPM:	2300
Torque:	259 lb-ft 351.2 Nm
Torque RPM:	1250
Starter volts:	12

Dimensions
Wheelbase:	81.9 inches 208 cm (2WD)
82.4 inches 209 cm (4WD)
Width:	42.5 inches 107 cm
