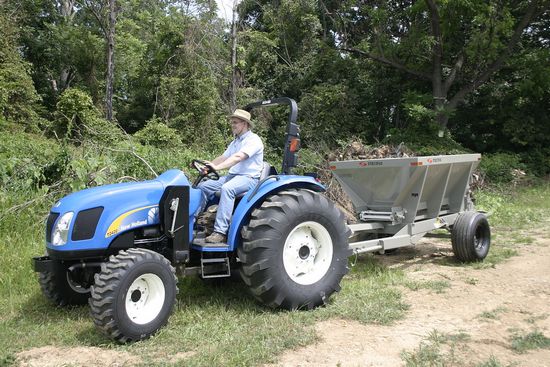

New Holland T2420

Production: 2008

Production
Manufacturer:	New Holland
Type:	Compact Utility tractor

New Holland T2420 Power
Engine (gross):	60 hp 44.7 kW
PTO (claimed):	51 hp 38.0 kW
PTO (tested):	51.57 hp 38.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	12-speed

Hydraulics
Type:	open center
Pump flow:	12 gpm 45.4 lpm
Steering flow:	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	3,465 lbs 1571 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibaura
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	135.2 ci 2.2 L
Bore/Stroke:	3.307x3.937 inches 84 x 100 mm
Power (gross):	60 hp 44.7 kW
Air cleaner:	dual paper elements
Rated RPM:	2800
Starter volts:	12

Transmission
Transmission:	Synchro Shuttle Shift (SSS)
Gears:	12 forward and reverse

Dimensions
Wheelbase:	74.8 inches 189 cm
Length:	137.3 inches 348 cm
Width:	71.6 inches 181 cm
Height (ROPS):	71.4 inches 181 cm
Height (cab):	88.25 inches 224 cm
Shiping weight:	4,260 lbs 1932 kg (ROPS)
5,220 lbs 2367 kg (cab)
