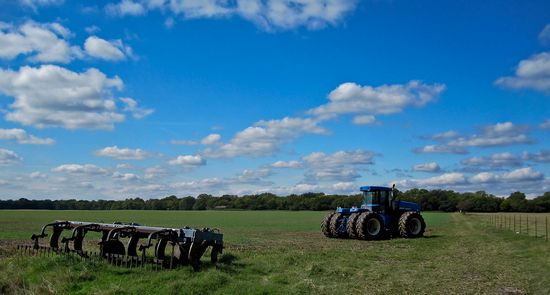

New Holland 9684
Contents:
Production | |
| Distributor: | New Holland |
| Manufacturer: | Versatile |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Winnipeg, Manitoba, Canada |
New Holland 9684 Power | |
| Engine: | 360 hp 268.5 kW |
| Drawbar (tested): | 277.2 hp 206.7 kW |
| PTO (tested): | 349.1 hp 260.3 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | articulated power |
| Brakes: | hydraulic disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 12-speed partially synchronized |
Hydraulics | |
| Valves: | 4 |
| Pump flow: | 50 gpm 189.3 lpm |
Tractor hitch | |
| Rear Type: | III/IVN |
Power Take-off (PTO) | |
| Rear RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| Cummins | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 855 ci 14.0 L |
| Bore/Stroke: | 5.50x6.00 inches 140 x 152 mm |
| Power: | 360 hp 268.5 kW |
| Air cleaner: | dual paper elements |
| Compression: | 18.5:1 |
| Rated RPM: | 2100 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Quadrasync |
| Type: | partially synchronized |
| Gears: | 12 forward and 4 reverse |
| Clutch: | hydraulic wet disc |
Dimensions | |
| Operating weight: | 30,630 lbs 13893 kg (duals) |
