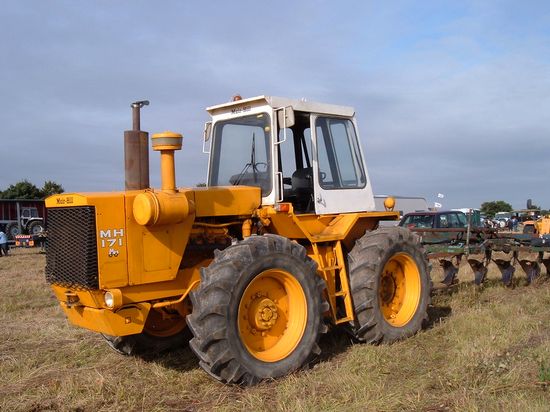

Muir-Hill 171

Production: 1975 - 1984

Production
Manufacturer:	Muir-Hill
Type:	Four-wheel Drive (4WD) tractor
Factory:	Manchester, England

Muir-Hill 171 Power
Engine:	177 hp 132.0 kW
PTO (claimed):	130 hp 96.9 kW

Mechanical
Chassis:	4x4 4WD
Final drives:	planetary
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with heater. Optional air-conditioning.
Transmission:	10-speed gear

Capacity
Fuel:	84 gal 317.9 L
Hydraulic system:	22.8 gal 86.3 L (3pt/steering)
17.4 gal 65.9 L (PTO)

Hydraulics
Type:	open center
Capacity:	22.8 gal 86.3 L (3pt/steering)
17.4 gal 65.9 L (PTO)
Valves:	4
Pump flow:	24 gpm 90.8 lpm
Steering flow:	9.6 gpm 36.3 lpm

Tractor hitch
Rear Type:	III/II
Control:	position and draft control

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000 (1.375)
Engine RPM:	1000@2300

Electrical
Charging system:	alternator
Charging amps:	45
Batteries:	2
Battery volts:	12
Battery AH:	128

Engine Detail
Perkins V8.540
diesel
8-cylinder
liquid-cooled
Displacement:	539 ci 8.8 L
Bore/Stroke:	4.25x4.75 inches 108 x 121 mm
Power:	177 hp 132.0 kW
Fuel system:	direct injection
Air cleaner:	dry
Compression:	16.5:1
Rated RPM:	2500
Torque:	410 lb-ft 556.0 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	24

Transmission
Transmission:	Eaton-Fuller T4510
Type:	gear
Gears:	10 forward and 2 reverse
Clutch:	355.6mm dry disc

Dimensions
Wheelbase:	86.6 inches 219 cm
Length:	186.5 inches 473 cm
Width:	96.5 inches 245 cm
Height (cab):	123.5 inches 313 cm
Weight:	14000 lbs 6350 kg
Front tread:	76 inches 193 cm
Front tread:	68 to 84 inches 172 to 213 cm
Rear tread:	76 inches 193 cm
Rear tread:	68 to 84 inches 172 to 213 cm
