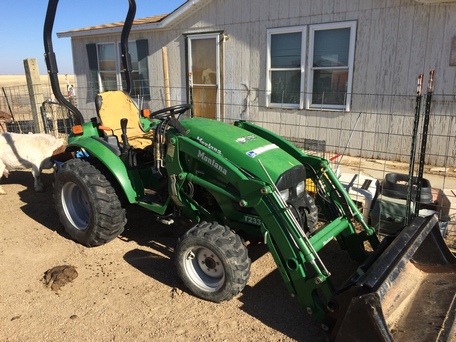

Montana T2334

Production: 2006 - 2009

Production
Manufacturer:	Montana
Type:	Compact Utility tractor

Montana T2334 Power
Engine:	23 hp 17.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Valves:	1
Pump flow:	5 gpm 18.9 lpm
Total flow:	7.6 gpm 28.8 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1213 lbs 550 kg

Power Take-off (PTO)
Rear RPM:	540
Mid PTO:	standard
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Mitsubishi S3L
diesel
3-cylinder
liquid-cooled
Displacement:	68.6 ci 1.1 L
Bore/Stroke:	3.071x3.091 inches 78 x 79 mm
Power:	23 hp 17.2 kW
Air cleaner:	single dry element
Rated RPM:	2700
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	58.3 inches 148 cm
Length:	92.1 inches 233 cm
Width:	49 inches 124 cm
Height:	78.7 inches 199 cm
Weight:	1654 lbs 750 kg
Ground clearance:	11.8 inches 29 cm
