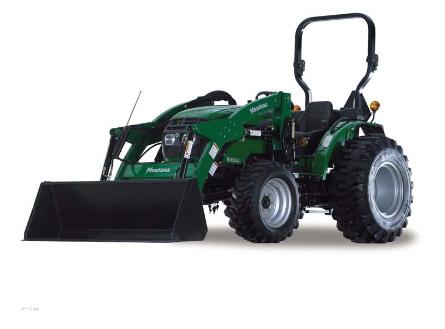

Montana R4944

Production: 2007 - 2010

Production
Distributor:	Montana
Manufacturer:	LS
Type:	Compact Utility tractor

Montana R4944 Power
Engine:	47 hp 35.0 kW
Gear PTO (claimed):	41 hp 30.6 kW
Hydro PTO (claimed):	39 hp 29.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	16-speed sync shuttle
hydrostatic

Hydraulics
Pressure:	2560 psi 176.5 bar
Rear valves:	2
Pump flow:	8.2 gpm 31.0 lpm
Steering flow:	4.121 gpm 15.6 lpm
Steering press.:	2062 psi 142.2 bar

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2755 lbs 1249 kg

Power Take-off (PTO)
Rear PTO:	transmission
Rear RPM:	540
Mid PTO:	optional

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Mitsubishi S4QL
diesel
4-cylinder
liquid-cooled
Displacement:	152.9 ci 2.5 L
Bore/Stroke:	3.464x4.055 inches 88 x 103 mm
Power:	47 hp 35.0 kW
Fuel system:	indirect injection
Air cleaner:	dry dual element
Pre-heating:	indirect injection
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	69 inches 175 cm
Length:	126 inches 320 cm
Height:	96 inches 243 cm
Weight:	3582 lbs 1624 kg
Ground clearance:	15 inches 38 cm
