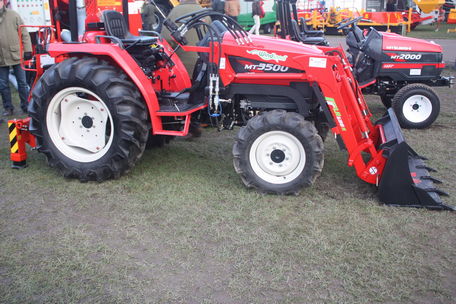

Mitsubishi MT3500

Production: 2007 - 2012

Production
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Mitsubishi MT3500 Power
Engine:	35 hp 26.1 kW
PTO (claimed):	29 hp 21.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	9-speed gear

Hydraulics
Pressure:	1850 psi 127.6 bar
Pump flow:	7.4 gpm 28.0 lpm
Steering flow:	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
draft control*Optional
Rear lift (at ends):	2205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2376 1000@2421
Mid PTO:	optional

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Mitsubishi
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	91.3 ci 1.5 L
Bore/Stroke:	3.307x3.543 inches 84 x 90 mm
Power:	35 hp 26.1 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	9 forward and 3 reverse

Dimensions
Wheelbase:	66.9 inches 169 cm
Length:	119.3 inches 303 cm
Width:	54.3 inches 137 cm
Height (ROPS):	98.6 inches 250 cm
Weight:	2767 lbs 1255 kg
Ground clearance:	12.8 inches 32 cm
